RP112 Series
Low Noise 150mA LDO Regulator

Download Datasheet
ECAD Model: Learn more
  • Standard
  • Product Longevity Program
  • RoHS
Package1 Package2 Package3
拡大
:q Package1
:q Package2
:q Package3
Package1
Package2
Package3
Package1
Package2
Package3

Description

The RP112 Series are CMOS-based LDO regulators featuring 150mA output current. The RP112 features ultra low noise and its Ripple Rejection is as low as 80dB at f=1kHz, 75dB at f=10kHz and 65dB at f=100kHz. The Output Noise is also as low as Typ. 10µVrms. It is kept the low level at any output voltage. RP112 is suitable for the power source for the portable music player and RF module that demands for higher level of noise reduction. SOT-23-5 and SC-88A packages, a 1mm square DFN(PL)1010-4 package are available.

Spec

Standard
Input Voltage Range 2.0 V to 5.25 V (6.0 V)
Operating Temperature Range -40°C to 85°C (125°C)
Supply Current Typ. 75 µA
Standby Current Typ. 0.1 µA
Output Voltage Range 1.2 V to 4.8 V (0.1 V step)
Output Voltage Accuracy ±1.0% (Ta = 25°C)
Output Voltage Temperature Coefficient Typ. ±30 ppm/°C
Line Regulation Typ. 0.02%/V
Output Current 150 mA
Ripple Rejection Typ. 80 dB (f = 1 kHz)
Typ. 75 dB (f = 10 kHz)
Typ. 65 dB (f = 100 kHz)
Package DFN(PL)1010-4, SC-88A, SOT-23-5

Download Datasheet

Protections / Functions

TSD Reverse Current Limit ISC Inrush Constant Slope ECO mode Auto Discharge External Driver PGOOD

Functional Description

TSD Thermal Shutdown Function
Reverse Current Protection Reverse Current Protection
Current Limit Overcurrent Protection
ISC Short Current Protection
Inrush Current Limit Inrush Current Protection
Constant Slope Constant Slope Function
ECO mode ECO Function
Auto Discharge Auto Discharge Function
External Driver External Output Driver Transistor

Functional Description

TSD Thermal Shutdown Function
Reverse Current Protection Reverse Current Protection
Current Limit Overcurrent Protection
ISC Short Current Protection
Inrush Current Limit Inrush Current Protection
Constant Slope Constant Slope Function
ECO mode ECO Function
Auto Discharge Auto Discharge Function
External Driver External Output Driver Transistor

Search for similar products under conditions below.

Category:LDO Linear Regulators

VIN
min (V)		 2.0
VIN
max (V)		 5.25
VOUT
min (V)		 1.2
VOUT
max (V)		 4.8
IOUT
(mA)		 150
ISS
(µA)		 75
Functions Auto Discharge

Technical Documents

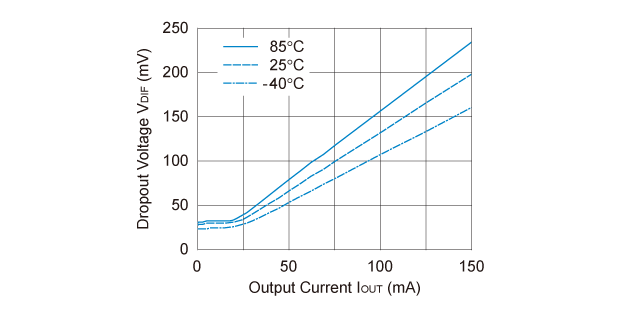

  • RP112x28xx Dropout Voltage vs. Output Current

    RP112x28xx Dropout Voltage vs. Output Current

Quality & Packages

Product Name Compatibility Package Marking Reliability
RP112Kxx1x-TR
  • gradeConsumer
  • plp
 DFN(PL)1010-4 See datasheet RP112K
RP112Qxx2x-TR-FE
  • gradeConsumer
 SC-88A See datasheet RP112Q-FE
RP112Nxx1x-TR-FE
  • gradeConsumer
  • plp
 SOT-23-5 See datasheet RP112N-FE
  • Refer to the datasheets for the details on the product.
  • The package file or the datasheet includes package dimensions, taping specifications, taping reels dimensions, power dissipations, and recommended land pattern.
