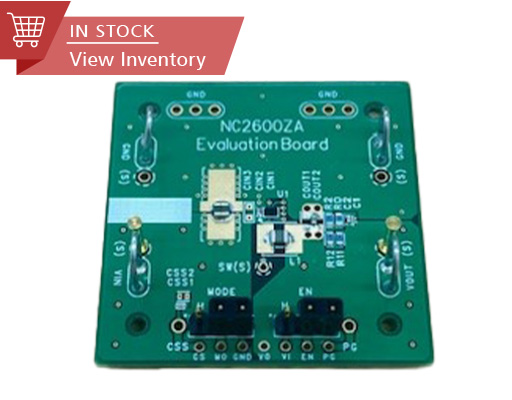

NC2600 Series
2A Low Quiescent Current PWM/PFM Step-down Switching Regulator

Download Datasheet
Point
Provides at-a-glance product features, functions, and concepts.
ECAD Model: Learn more
  • Standard
  • Product Longevity Program
  • RoHS
Package1
Package2
Package1
Package2

Description

The NC2600 is a low quiescent current PWM / PFM 2A step-down switching regulator IC using CMOS-based. The NC2600 is available in WLCSP-8-P11 and DFN2020-8-GT, and it is suitable for use in wearable and IoT devices that require miniaturization and long-lifetime of battery.

Spec

Standard
Input Voltage Range 2.3 V to 5.5 V (6.5 V)
Operating Temperature Range -40°C to 85°C (125°C)
Supply Current Typ. 17 µA
Standby Current Typ. 0 µA
Output Voltage Range Fixed Output Voltage Type: 0.6 V to 3.3 V (0.1 V step)
Adjustable Output Voltage Type: 0.6 V to 5.5 V
Output Voltage Accuracy ±1.5% (VSET ≥ 1.2 V)
±18 mV (VSET < 1.2 V)
Feedback Voltage Typ. 0.6 V
Feedback Voltage Accuracy ±9 mV
Output Current 2 A
Driver ON-resistance Pch: Typ. 0.130 Ω, Nch: Typ. 0.09 Ω (NC2600ZA)
Pch: Typ. 0.150 Ω, Nch: Typ. 0.12 Ω (NC2600GT)
Oscillator Frequency Typ. 4.0 MHz
Package WLCSP-8-P11, DFN2020-8-GT

Download Datasheet

Protections / Functions

TSD ILX OCP OVP UVLO OVLO Reverse Shutdown Soft Start SSCG PGOOD Auto Discharge Anti-ringing Sequencing Max Duty Ext. Phase LED Adjust

Functional Description

TSD Thermal Shutdown Function
ILX LX Current Limit Function
OCP Overcurrent Protection
OVP Overvoltage Protection
UVLO Undervoltage Lockout Protection
OVLO Overvoltage Lockout Protection
Reverse Reverse Current Protection Circuit
Shutdown Shutdown Function
Soft Start Soft Start Function
SSCG Spread Spectrum Clock Generator Function
PGOOD Power Good Output
Auto Discharge Auto Discharge Function
Anti-ringing Anti-ringing Switch Function
Sequencing Start-up Sequencing Control
Max Duty Maximum Duty Cycle
Ext. Phase Externally Adjustable Phase Compensation
LED Adjust LED High-speed Dimming Control

Functional Description

TSD Thermal Shutdown Function
ILX LX Current Limit Function
OCP Overcurrent Protection
OVP Overvoltage Protection
UVLO Undervoltage Lockout Protection
OVLO Overvoltage Lockout Protection
Reverse Reverse Current Protection Circuit
Shutdown Shutdown Function
Soft Start Soft Start Function
SSCG Spread Spectrum Clock Generator Function
PGOOD Power Good Output
Auto Discharge Auto Discharge Function
Anti-ringing Anti-ringing Switch Function
Sequencing Start-up Sequencing Control
Max Duty Maximum Duty Cycle
Ext. Phase Externally Adjustable Phase Compensation
LED Adjust LED High-speed Dimming Control

Search for similar products under conditions below.

Category:DC/DC Switching Regulators

Topology Buck
VIN
min (V)
2.3
VIN
max (V)
5.5
VOUT
min (V)
0.6
VOUT
max (V)
5.5
IOUT
(mA)
2000
ISS
(µA)
17
