R3116 Series
0.8% Accuracy 0.5V Operating Voltage Detector with Delay Function
Description
The R3116 Series are CMOS-based voltage detector ICs with the built-in output delay circuit. The R3116 can operate at low voltage from 0.5V and the detector threshold can be specified from 0.7V. The detector threshold accuracy as high as ±0.8% helps to increase stable operating area coupled with lower voltage. Additionally, the high accuracy output delay time at ±15% allows easy control of the start-up sequence. The R3116 is offered in: - 5-pin SOT-23-5, 4-pin SC-82AB and 4-pin DFN(PL)1010-4 packages for consumer applications - 5-pin SOT-23-5 and 4-pin DFN(PL)1010-4 packages for industrial applications - 5-pin SOT-23-5 and 4-pin DFN1212-4 packages for automotive applications This product for industrial applications are characterized to -50°C, and operates in a wide temperature range from low temperature to high temperature.
Spec
| Standard | Industrial | Automotive | |
|---|---|---|---|
| Operating Voltage Range | 0.5 V to 6.0 V (7.0 V) | ||
| Operating Temperature Range | -40°C to 85°C (125°C) | -50°C to 105°C (125°C) | -40°C to 105°C (125°C) |
| Supply Current | Typ. 0.35 µA (-VDET = 1.5 V, VDD = -VDET+1 V) | ||
| Detector Threshold Range | 0.7 V to 5.0 V (0.1 V step) | ||
| Detector Threshold Accuracy | ±0.8% (-VDET ≥ 1.5 V, Ta = 25°C) | ||
| Detector Threshold Temperature Coefficient | Typ. ±30 ppm/°C | ||
| Release Delay Time | 100 ms (CD = 0.022 µF) Adjustable with an external capacitor | ||
| Release Delay Time Accuracy | ±15% (-VDET ≥ 1.5 V) | ||
| Output Type | CMOS, Nch Open Drain | ||
| Package | DFN(PL)1010-4, SC-82AB, SOT-23-5 | DFN(PL)1010-4, SOT-23-5 | DFN1212-4, SOT-23-5 |
Technical Documents
-
SPICE model download
You can download the product's SPICE model. Login/registration to myNISD is required to download.
-

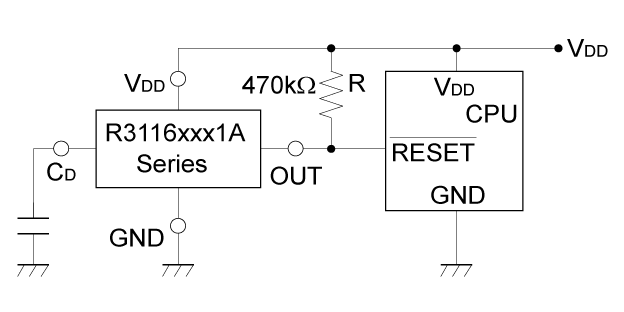

Typical Application: R3116xxx1A CPU Reset Circuit (Nch Open Drain Output)
Input Voltage to R3116xxx1A is equal to Input Voltage to CPU
-

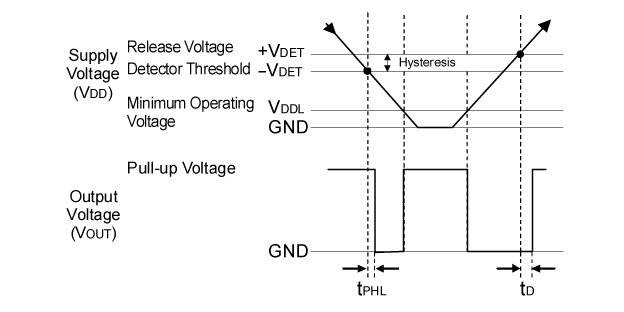

R3116xxx1A Timing Chart
-

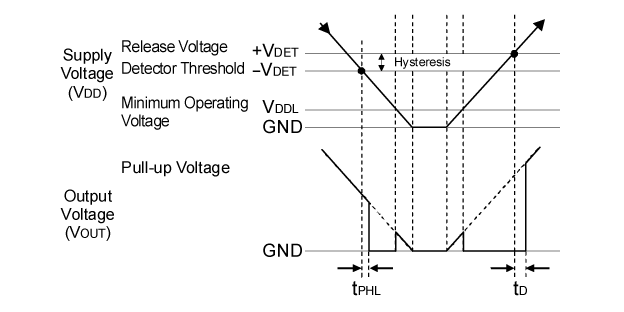

R3116xxx1C Timing Chart
Quality & Packages
| Product Name | Compatibility | Package | Marking | Reliability |
|---|---|---|---|---|
| R3116Kxx1x-TR |
|
DFN(PL)1010-4 | R3116K | R3116K |
| R3116Qxx1x-TR-FE |
|
SC-82AB | R3116Q | R3116Q-FE |
| R3116Nxx1x-TR-FE |
|
SOT-23-5 | R3116N | R3116N-FE |
| R3116Kxx1x-TR-Y |
|
DFN(PL)1010-4 | R3116K | R3116K-Y |
| R3116Nxx1x-TR-YE |
|
SOT-23-5 | R3116N | R3116N-YE |
| R3116Lxx1x-TR-A |
|
DFN1212-4 | R3116L | R3116L-A |
| R3116Nxx1x-TR-AE |
|
SOT-23-5 | R3116N | R3116N-AE |
- Refer to the datasheets for the details on the product.
- The package file or the datasheet includes package dimensions, taping specifications, taping reels dimensions, power dissipations, and recommended land pattern.
Qualification Test Plan (QTP) Sheets
To download the QTP sheets, a myNISD account is required. If you do not have an account, please register in advance.If you already have an account, please click the button below. After logging in to myNISD, the QTP sheet list page for the corresponding series will be displayed.
