NJR4265R series
[Discontinued Product] 24GHz Motion Detector / Doppler Module, Digital Output / Standard type
NJR4265R series
[Discontinued Product] 24GHz Motion Detector / Doppler Module, Digital Output / Standard type
拡大
Description
Features
- Motion detector using the 24GHz Microwave Doppler
- Antenna, RF circuit, IF amp, MCU and voltage regulator are integrated in a small package
- Low voltage operation and low power consumption
- Signal processing software for the steady sensing
- Communication with PC/MCU is available by UART interface and stand-alone operation is also possible
Series Line-up
| Part No. | RF Frequency | Region / Regurations |
| NJR4265RJ1C1 | 24.05 to 24.25 GHz | Japan / Technical Conformity [Certified] |
|---|---|---|
| NJR4265RF1C1 | Europe except specific regions / CE - RE Directive [Compliance] | |
| NJR4265RF2C1 | 24.15 to 24.25 GHz | Europe / CE - RE Directive [Compliance] |
| NJR4265RF3C1 | 24.075 to 24.175 GHz | U.S.A. / FCC Certification [Certified] |
Evaluation Kit

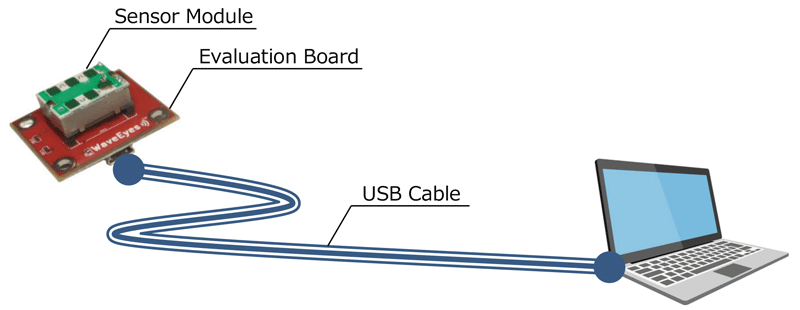

| Contents List | • Module • Evaluation Board • USB Cable • GUI |
|---|
Spec
| Items | Parameters | ||
|---|---|---|---|
| RF Frequency | 24.05 to 24.25 GHz | ||
| Output Transmission Power | E.I.R.P. +20 mW max. | ||
| Maximum Detection Distance | 10 m | ||
| Antenna Angle | 70 ° / 90 ° (depends on installation direction) | ||
| Detectable Speed Range | 0.25 to 1.0 m/s [Reference] | ||
| Detection Output Method | UART COMS Level High/Low |
||
| Power Supply | Input Voltage: 3.0 to 5.25 V Current: 60 mA |
||
| Operating Temperature Range | -20 to +60 ℃ | ||
| Dimensions | (L) 20.4 x (W) 14 x (H) 8.8 mm | ||
| Weight | 5 g max. | ||
