NJR4267 series
24GHz Motion Detector / Doppler Module, Digital Output / High Sensitivity Type
NJR4267 series
24GHz Motion Detector / Doppler Module, Digital Output / High Sensitivity Type
拡大
Description

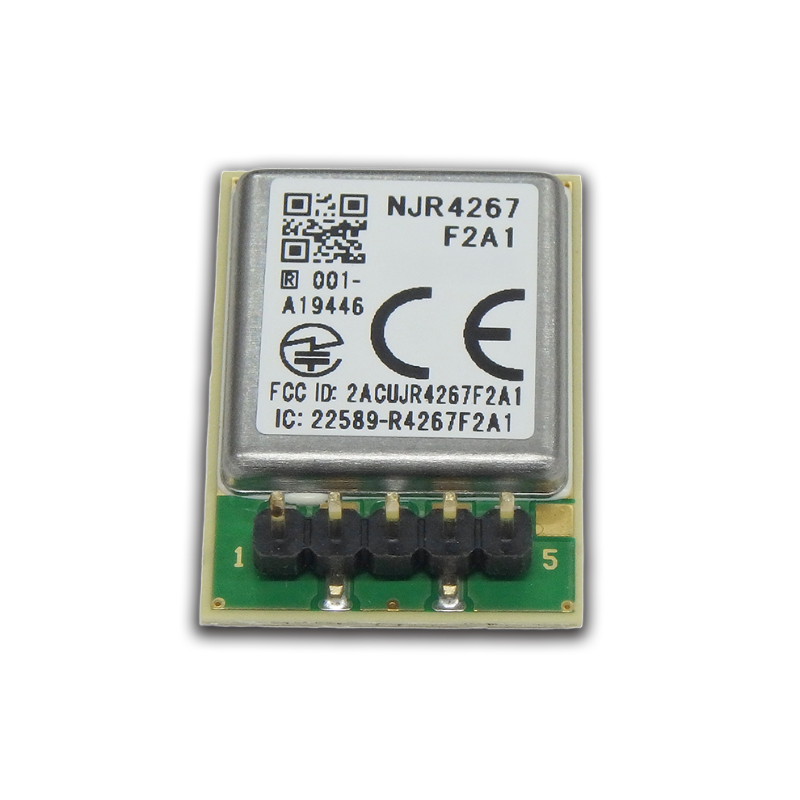

The NJR4267 is a microwave 24GHz Doppler sensor module in a small and low profile package measuring 17.2 x 25 x 3.1 mm. Despite its small size, it is an all-in-one module with built-in microwave circuit, antenna, and MCU for control and signal processing.
Features
- Motion detector using the 24GHz Microwave Doppler
- Antenna, RF circuit, IF amp, MCU and voltage regulator are integrated
- Equipped with an optimal algorithm for detecting moving objects
- Supports UART/PWM/CMOS level output interface
- Low power consumption due to intermittent operation

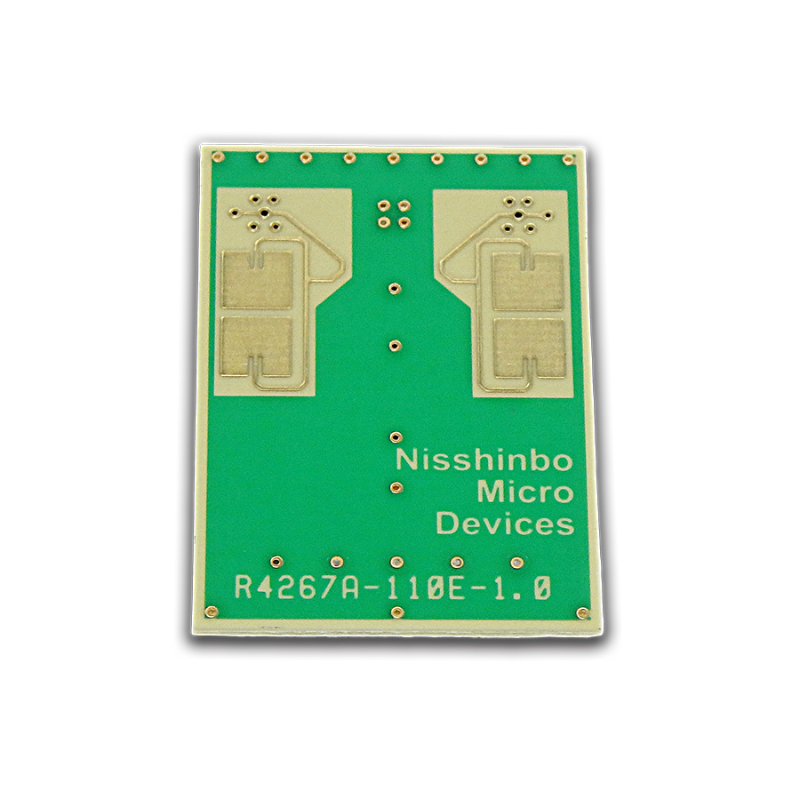

- Antenna angle (half width) V plane 80°/H plane 110°
- Small and low profile package
Series Line-up
| Part No. | RF Frequency | Antenna Type | Region / Regurations |
| NJR4267F2A1 | 24.15 to 24.25 GHz (F2 type) |
1x1 antenna (Range: 20 m) (Angle: 80° / 110°) |
Japan / Technical Conformity [Certified] EU / CE - RE Directive [Certified] → USA / FCC Certification [Certified] |
|---|---|---|---|
| NJR4267F2B1 | 2x1 antenna (Range: 30 m) (Angle: 84° / 66°) |
Japan / Technical Conformity [Certified] EU / CE - RE Directive [Certified] → |
|
| NJR4267F3B1 | 24.075 to 24.175 GHz (F3 type) |
Japan / Technical Conformity [Certified] USA / FCC Certification [Certified] |
Outline Drawing

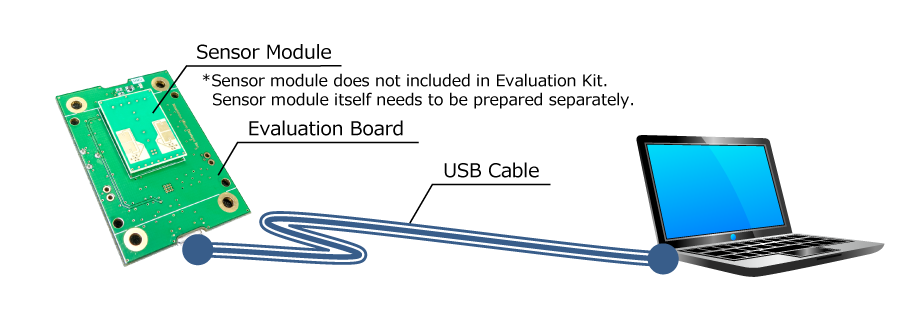

Evaluation Kit
| Contents List | • Evaluation Board • USB Cable • Attached Manual • GUI *Sensor module itself needs to be prepared separately. |
|---|
Spec
| Items | Parameters | ||
|---|---|---|---|
| RF Frequency | 24.15 to 24.25 GHz or 24.075 to 24.175 GHz | ||
| Output Transmission Power | E.I.R.P. +10.1 dBm (Depends on antenna type) | ||
| Maximum Detection Distance | 20 to 30 m (Pedestrian / Depends on antenna type) | ||
| Antenna Angle | 66° to 110° (Depends on antenna type) | ||
| Detectable Speed Range | 0.13 to 19.2 m/s (Reference) | ||
| Power Supply | Input Voltage: 3.8 to 5.8 V Current: 1.5 to 55 mA (Depends on operating conditions) |
||
| Operating Temperature Range | -30 to +85 ℃ | ||
| Dimensions | (L) 25 x (W) 17.2 x (H) 3.1 mm | ||
| Weight | typ. 1.9 g | ||
