RP114 Series
Low Voltage 300mA LDO Regulator

Download Datasheet
ECAD Model: Learn more
  • Standard
  • Product Longevity Program
  • RoHS
Package1 Package2 Package3 Package4
拡大
:q Package1
:q Package2
:q Package3
:q Package4
Package1
Package2
Package3
Package4
Package1
Package2
Package3
Package4

Description

The RP114 Series are CMOS-based LDO regulators featuring 300mA output. RP114 features a supply current from 50µA, a minimum input voltage from 1.4V and the output voltage, which can be set from 0.8V to 3.6V (in 0.1V step). In addition to SOT-23-5 and SC-88A packages, 1mm square DFN(PL)1010-4 and DFN(PL)1010-4B are also available.

Spec

Standard
Input Voltage Range 1.4 V to 5.25 V (6.0 V)
Operating Temperature Range -40°C to 85°C (125°C)
Supply Current Typ. 50 µA
Standby Current Typ. 0.1 µA
Output Voltage Range 0.8 V to 3.6 V (0.1 V step)
Output Voltage Accuracy ±1.0% (Ta = 25°C)
Output Voltage Temperature Coefficient Typ. ±80 ppm/°C

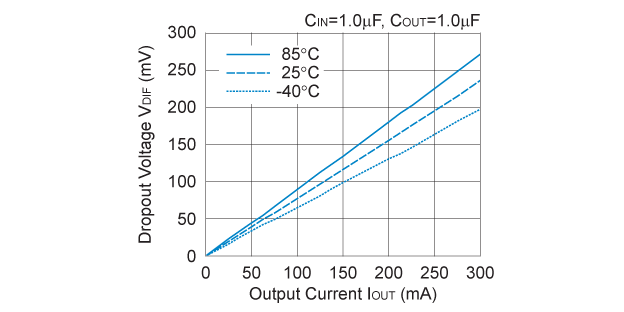

Dropout Voltage Typ. 0.25 V (IOUT = 300 mA, VSET = 2.8 V)
Line Regulation Typ. 0.02%/V
Output Current 300 mA
Ripple Rejection Typ. 75 dB (f = 1 kHz)
Package DFN(PL)1010-4, DFN(PL)1010-4B, SC-88A, SOT-23-5

Download Datasheet

Protections / Functions

TSD Reverse Current Limit ISC Inrush Constant Slope ECO mode Auto Discharge External Driver PGOOD

Functional Description

TSD Thermal Shutdown Function
Reverse Current Protection Reverse Current Protection
Current Limit Overcurrent Protection
ISC Short Current Protection
Inrush Current Limit Inrush Current Protection
Constant Slope Constant Slope Function
ECO mode ECO Function
Auto Discharge Auto Discharge Function
External Driver External Output Driver Transistor

Functional Description

TSD Thermal Shutdown Function
Reverse Current Protection Reverse Current Protection
Current Limit Overcurrent Protection
ISC Short Current Protection
Inrush Current Limit Inrush Current Protection
Constant Slope Constant Slope Function
ECO mode ECO Function
Auto Discharge Auto Discharge Function
External Driver External Output Driver Transistor

Search for similar products under conditions below.

Category:LDO Linear Regulators

VIN
min (V)		 1.4
VIN
max (V)		 5.25
VOUT
min (V)		 0.8
VOUT
max (V)		 3.6
IOUT
(mA)		 300
ISS
(µA)		 50
Functions Auto Discharge

Technical Documents

Quality & Packages

Product Name Compatibility Package Marking Reliability
RP114Kxx1x-TR
  • gradeConsumer
  • plp
 DFN(PL)1010-4 See datasheet RP114K
RP114Kxx1x-TRB
  • gradeConsumer
  • plp
 DFN(PL)1010-4B See datasheet RP114K-TRB
RP114Qxx2x-TR-FE
  • gradeConsumer
 SC-88A See datasheet RP114Q-FE
RP114Nxx1x-TR-FE
  • gradeConsumer
  • plp
 SOT-23-5 See datasheet RP114N-FE
  • Refer to the datasheets for the details on the product.
  • The package file or the datasheet includes package dimensions, taping specifications, taping reels dimensions, power dissipations, and recommended land pattern.
