R5523 Series
USB Pch High-side Switch IC

Download Datasheet
ECAD Model: Learn more
  • Standard
  • For Automotive
  • Product Longevity Program
  • RoHS
Package1
拡大
:q Package1
Package1
Package1

Description

The R5523 Series are CMOS-based USB high side switch IC. R5523 is a protection IC used in power line of USB with built-in current limit circuit, thermal shutdown circuit, and under-voltage lockout circuit (UVLO). R5523 contains an internal delay circuit to prevent output of flag signal of false detection caused by inrush current. SOT-23-5 package is available, which is smaller than SOT-89-5 (R5520).

Spec

Standard Automotive
Input Voltage Range 2.2 V to 5.5 V (6.5 V)
Operating Temperature Range -40°C to 85°C (125°C)
Supply Current Typ. 20 µA
Standby Current Typ. 0.1 µA
Output Current Min. 500 mA
ON-resistance Typ. 130 mΩ
Internal FET Pch
Package SOT-23-5
Thermal Shutdown 135°C

Download Datasheet

Protections / Functions

TSD Reverse OCP UVLO OVLO Soft Start PGOOD Auto Discharge Reset

Functional Description

TSD Thermal Shutdown Function
Reverse Current Protection Reverse Current Protection
OCP Overcurrent Protection
UVLO Undervoltage Lockout Protection
OVLO Overvoltage Lockout Protection
Soft Start Soft Start Function
PGOOD Power Good Output
Auto Discharge Auto Discharge Circuit

Functional Description

TSD Thermal Shutdown Function
Reverse Current Protection Reverse Current Protection
OCP Overcurrent Protection
UVLO Undervoltage Lockout Protection
OVLO Overvoltage Lockout Protection
Soft Start Soft Start Function
PGOOD Power Good Output
Auto Discharge Auto Discharge Circuit

Search for similar products under conditions below.

Category:Switch ICs

Features USB SW
VIN
min (V)		 2.2
VIN
max (V)		 5.5
ON Resistance
(mΩ)		 130
IOUT
(mA)		 500

Technical Documents

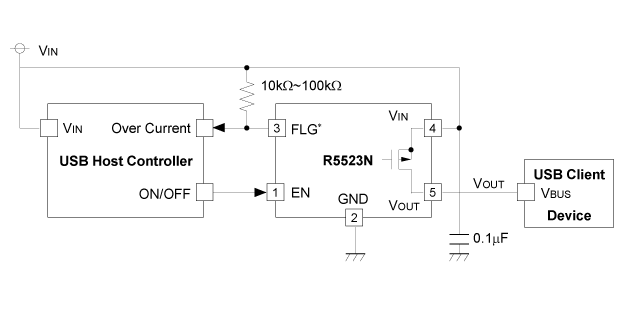

  • Typical Application

    Typical Application

    *) FLG pin is Nch. open drain output.

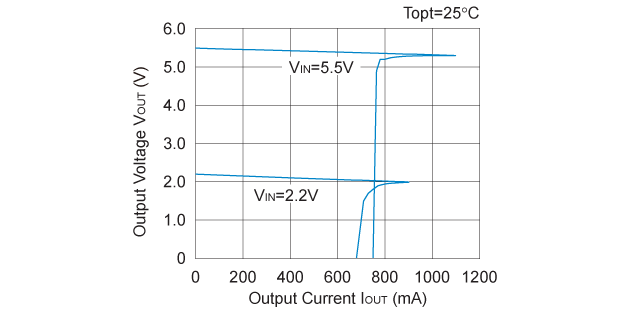

  • R5523N001A Output Voltage vs. Output Current

    R5523N001A Output Voltage vs. Output Current

Quality & Packages

Product Name Compatibility Package Marking Reliability
R5523N001x-TR-FE
  • gradeConsumer
  • plp
 SOT-23-5 R5523N R5523N-FE
R5523N001x-TR-HE
  • gradeAutomotive
  • plp
 SOT-23-5 See datasheet R5523N-HE
  • Refer to the datasheets for the details on the product.
  • The package file or the datasheet includes package dimensions, taping specifications, taping reels dimensions, power dissipations, and recommended land pattern.
