R1163 Series
Manual ECO Mode Shift 150mA Voltage Regulator with Reverse Current Protection

Download Datasheet
ECAD Model: Learn more
  • Standard
  • For Automotive
  • Product Longevity Program
  • RoHS
Package1
Package2
Package1
Package2

Description

The R1163 Series are CMOS-based manual mode switching LDO regulators with ECO pin featuring 150mA output. By inputting control signals to the ECO pin, the mode of the regulator can be switched to low power mode or fast response mode, thus making both active and sleep modes available for the system. The built-in reverse current protection circuit prevents the current flow from VOUT to VDD when VOUT is higher than VDD. This feature makes the product ideally suited for backup circuit. Standby mode and auto-discharge function are also available.

Spec

Standard Automotive
Input Voltage Range 2.0 V to 6.0 V (6.5 V)
Operating Temperature Range -40°C to 85°C (125°C)
Supply Current Typ. 6.0 µA (Low Power Mode)
Typ. 70 µA (Fast Transient Mode)
Standby Current Typ. 0.6 µA
Output Voltage Range 1.5 V to 5.0 V (0.1 V step)
Output Voltage Accuracy ±1.5% (Ta = 25°C)
Low Power Mode: ±2.5%
Output Voltage Temperature Coefficient Typ. ±100 ppm/°C
Dropout Voltage Typ. 0.25 V (IOUT = 150 mA, VOUT = 2.8 V)
Line Regulation Typ. 0.02%/V (Fast Transient Mode)
Output Current 150 mA
Ripple Rejection Typ. 70 dB (f = 1 kHz, Fast Transient Mode)
Output Noise Voltage Typ. 30 µVrms (Fast Transient Mode, BW = 10 Hz to 100 kHz)
Typ. 40 µVrms (Low Power Mode, BW = 10 Hz to 100 kHz)
Package SOT-23-5, SON-6 SOT-23-5

Download Datasheet

Protections / Functions

TSD Reverse Current Limit ISC Inrush ECO mode Auto Discharge External Driver PGOOD Soft Start

Functional Description

TSD Thermal Shutdown Function
Reverse Current Protection Reverse Current Protection
Current Limit Overcurrent Protection
ISC Short Current Protection
Inrush Current Limit Inrush Current Protection
Constant Slope Constant Slope Function
ECO mode ECO Function
Auto Discharge Auto Discharge Function
External Driver External Output Driver Transistor

Functional Description

TSD Thermal Shutdown Function
Reverse Current Protection Reverse Current Protection
Current Limit Overcurrent Protection
ISC Short Current Protection
Inrush Current Limit Inrush Current Protection
Constant Slope Constant Slope Function
ECO mode ECO Function
Auto Discharge Auto Discharge Function
External Driver External Output Driver Transistor

Search for similar products under conditions below.

Category:LDO Linear Regulators

VIN
min (V)
2.0
VIN
max (V)
6.0
VOUT
min (V)
1.5
VOUT
max (V)
5.0
IOUT
(mA)
150
ISS
(µA)
6
Functions ECO mode,Auto Discharge

Technical Documents

  • Typical Application

    Typical Application

    C1 (CIN) : 1.0 µF, C2 (COUT) : 0.47 µF

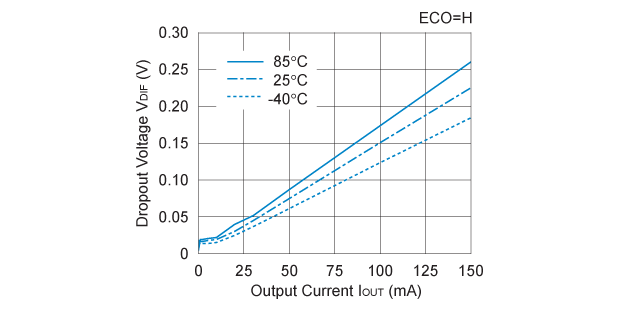

  • R1163x281x Dropout Voltage vs. Output Current (Fast Response Mode)

    R1163x281x Dropout Voltage vs. Output Current (Fast Response Mode)
