RN5VD Series
10V Input Voltage Detector with Delay Function

Download Datasheet
ECAD Model: Learn more
  • Standard
  • Product Longevity Program
  • RoHS
Package1
Package1

Description

The RN5VD Series are CMOS-based voltage detector ICs with the built-in output delay circuit. The delay time can be set with an external capacitor.

Spec

Standard
Operating Voltage Range 0.7 V to 10.0 V (12.0 V)
Operating Temperature Range -40°C to 85°C (125°C)
Supply Current Typ. 1.0 µA (RN5VD15x: VDD = 3.5 V)
Detector Threshold Range 0.9 V to 6.0 V (0.1 V step)
Detector Threshold Accuracy ±2.5% (Ta = 25°C)
Detector Threshold Temperature Coefficient Typ. ±100 ppm/°C
Output Type CMOS, Nch Open Drain
Package SOT-23-5

Download Datasheet

Search for similar products under conditions below.

Category:Voltage Detectors (Reset ICs)

VIN
min (V)
0.7
VIN
max (V)
10.0
Release
Delay Time
Adjustable
VDET
min (V)
0.9
VDET
max (V)
6.0

Technical Documents

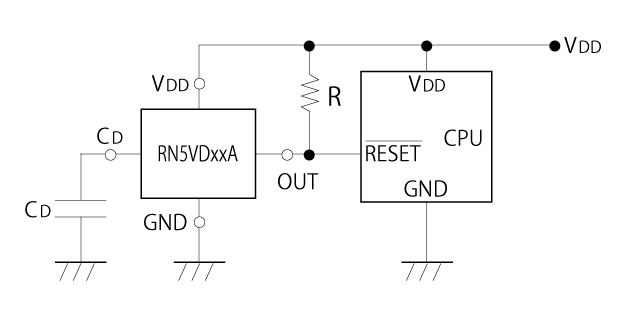

  • Typical Application: RN5VDxxA CPU Reset Circuit (Nch Open Drain Output)

    Typical Application: RN5VDxxA CPU Reset Circuit (Nch Open Drain Output)

    Input Voltage to RN5VDxxA is the same as the input voltage to CPU.

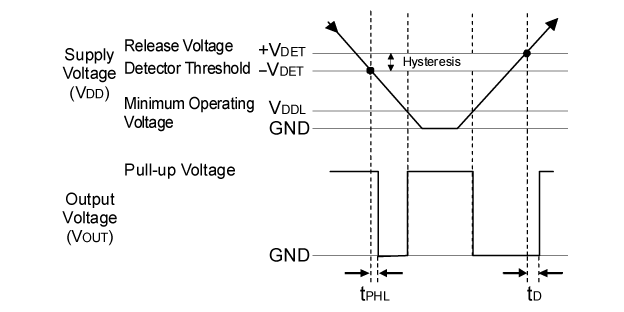

  • RN5VDxxAA Timing Chart

    RN5VDxxAA Timing Chart

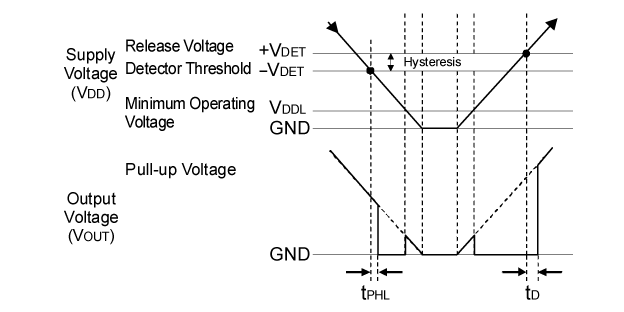

  • RN5VDxxCA Timing Chart

    RN5VDxxCA Timing Chart

Quality & Packages

  • Refer to the datasheets for the details on the product.
  • The package file or the datasheet includes package dimensions, taping specifications, taping reels dimensions, power dissipations, and recommended land pattern.
