R3160 Series
Low Supply Current 60V Input Voltage Detector

Download Datasheet
Point
Provides at-a-glance product features, functions, and concepts.
ECAD Model: Learn more
  • Standard
  • For Industrial
  • For Automotive
  • AEC-Q100
  • Product Longevity Program
  • RoHS
Package1
拡大
:q Package1
Package1
Package1

Description

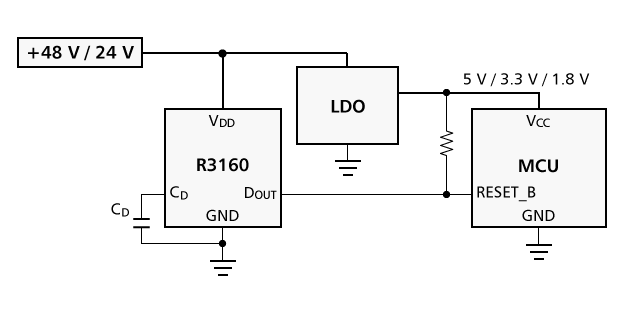

The R3160 is a 60 V-input voltage detector provided with high detector threshold accuracy and low supply current. This device offers a direct-monitoring of 24-/48-V battery and a detection of low-voltage battery state. This product for industrial applications are characterized to -50°C, and operates in a wide temperature range from low temperature to high temperature.

Key Benefits

  • Enables a direct-monitoring of battery voltage and can be used for an early warning of low-voltage battery state.
  • Provides a wide-range detector threshold of 10 V to 48 V and a high-accuracy of ±1.5% to ±1.75%.
  • Available in a small SOT-23-6 package.

Spec

Standard Industrial Automotive
Operating Voltage Range 2.7 V to 60.0 V (80.0 V)
Operating Temperature Range -40°C to 105°C (125°C) -50°C to 125°C (150°C) -40°C to 125°C (150°C)

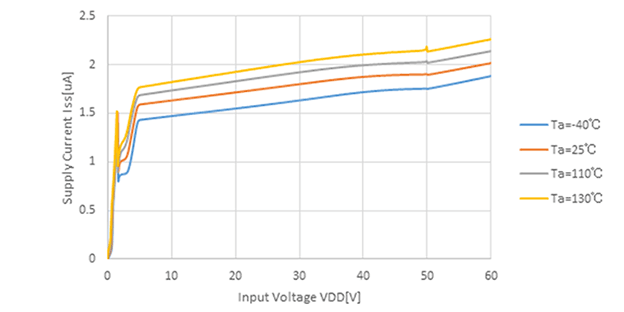

Supply Current Typ. 1.8 µA
Detector Threshold Range 10.0 V to 48.0 V (0.1 V step)
Detector Threshold Accuracy ±1.0% (Ta = 25°C)
Detection Release Hysteresis Typ. 4.3%
Release Delay Time Typ. 18 ms (CD = 0.01 µF)
Output Type Nch Open Drain
Package SOT-23-6

Download Datasheet

Search for similar products under conditions below.

Category:Voltage Detectors (Reset ICs)

VIN
min (V)		 2.7
VIN
max (V)		 60.0
Release
Delay Time 		Adjustable
VDET
min (V)		 10.0
VDET
max (V)		 48.0

Technical Documents

Quality & Packages

Product Name Compatibility Package Marking Reliability
R3160Nxxxx-TR-FE
  • gradeConsumer
  • plp
 SOT-23-6 R3160N R3160N-FE
R3160Nxxxx-TR-YE
  • gradeIndustrial
  • plp
 SOT-23-6 R3160N R3160N-YE
R3160Nxxxx-TR-KE
  • gradeAutomotive
  • aecQ100
  • plp
 SOT-23-6 R3160N R3160N-KE
R3160Nxxxx-TR-AE
  • gradeAutomotive
  • aecQ100
  • plp
 SOT-23-6 R3160N R3160N-AE
  • Refer to the datasheets for the details on the product.
  • The package file or the datasheet includes package dimensions, taping specifications, taping reels dimensions, power dissipations, and recommended land pattern.

Qualification Test Plan (QTP) Sheets

To download the QTP sheets, a myNISD account is required. If you do not have an account, please register in advance.
If you already have an account, please click the button below. After logging in to myNISD, the QTP sheet list page for the corresponding series will be displayed.
