NL8902 Series
High Quality Sound, JFET Input, Dual Audio Operational Amplifier

Download Datasheet
ECAD Model: Learn more
  • Standard
  • RoHS
Package1 Package2
拡大
:q Package1
:q Package2
Package1
Package2
Package1
Package2

Description

The NL8902 is a high quality sound dual audio operational amplifier that applies the high quality sound technology of "MUSES" to a more productive technology. The NL8902 features high quality sound, low noise, low distortion, high slew rate, and high EMI Immunity. The NL8902 is suitable for preamplifiers, active filters, line amplifiers, and other applications, especially for I/V conversion amplifiers that take advantage of the low input bias current characteristics of JFET inputs.

Applications

  • Home Audio
  • Professional Audio
  • Car Audio
  • Portable Audio

Spec

Standard
No.of Circuit 2 ch.
Power Supply Dual
Supply Voltage ±4.0 V to ±16 V ( 8 V ～ 32 V)
Supply Current (Per ch.) Typ. 1.3 mA to max. 2 mA
Input Offset Voltage Typ. 0.8 mV to max. 3 mV
Slew Rate Typ. 20 V/μsec
Input Bias Current Typ. 10 pA to max. 80 pA
Input Offset Current Typ. 5 pA to max. 75 pA
GBW Typ. 9 MHz
ft Typ. 7 MHz
Noise Voltage (VNI) Typ. 1.4 μVms
Noise Voltage (en) Typ. 10 nV/√Hz
Wide Operating Temperature -40°C to 125°C
Junction Temp. 150°C
Package EMP-8-AN

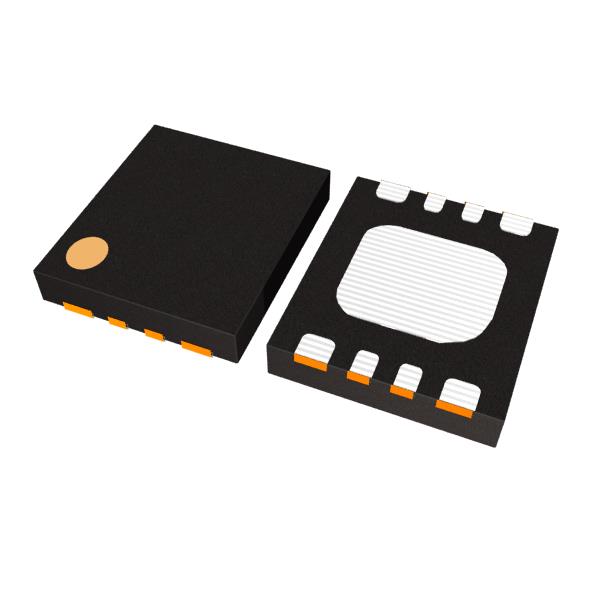

DFN4035-8-GR
High EMI Immunity EMIRR = 82dB (f = 1.8GHz)
Note JFET Input
Bipolar Technology

Download Datasheet

Search for similar products under conditions below.

Category:Operational Amplifiers

No.of Circuit 2
Power Supply Dual
Supply Voltage (+8V=8, ±8V=16) min(V) 8
Supply Voltage (+8V=8, ±8V=16) max(V) 32
Supply Current
(Per ch.) typ(mA)		 1.3
Input Offset Voltage max(mV) 3
Slew Rate typ(V/µsec) 20
GBW typ(MHz) 9
en(nV/√Hz) 10

Technical Documents

Quality & Packages

Product Name Compatibility Package Marking Reliability
NL8902ANAE2S
  • gradeConsumer
 EMP-8-AN See datasheet -
NL8902GRAE4S
  • gradeConsumer
 DFN4035-8-GR See datasheet -
  • Refer to the datasheets for the details on the product.
  • The package file or the datasheet includes package dimensions, taping specifications, taping reels dimensions, power dissipations, and recommended land pattern.
