New Release of the NP8700 Series, a Quad Channel Combination Regulator—Contributes to Downsizing of Automotive Camera Modules
Nisshinbo Micro Devices Inc. released the NP8700, a power management IC (PMIC) for automotive camera modules.
In recent years, automotive camera modules have been used for various in-vehicle applications, such as driver monitoring systems, rear seat reminders, and gesture controls. As a result, demand for these camera modules is increasing. These modules are installed in tight spaces, such as interior roofs, mirrors, and consoles. Therefore, downsizing and thinning are strongly required.
This product integrates four regulators into a single package to overcome this challenge. Furthermore, it contributes to reducing peripheral components and saving board space by incorporating a standalone sequence setting function and a power-good function, which eliminates the need for reset ICs.

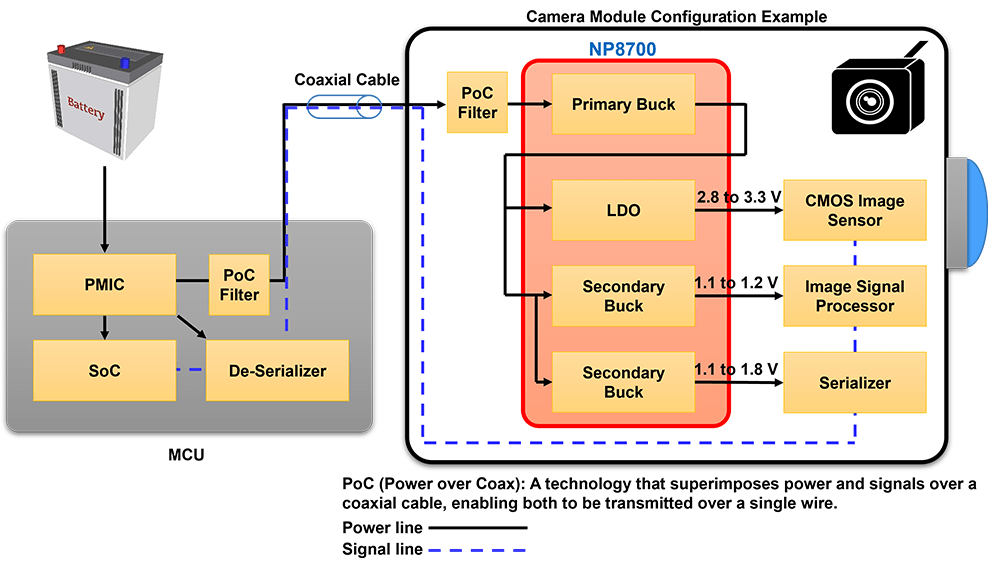

The four regulators built into this product cover a wide range of specifications required for camera modules.
- Ch.1: Medium voltage (operating voltage: 20 V), output current: 1.2 A, synchronous buck converter
- Ch.2: Low voltage (operating voltage: 5.5 V), output current: 1.0 A, synchronous buck converter
- Ch.3: Low voltage (operating voltage: 5.5 V), selectable regulator (output current: 1.0 A, synchronous buck converter OR output current: 0.2 A, LDO)
- Ch.4: Low voltage (operating voltage: 5.5 V), output current: 0.2 A, LDO (It can be operated as an HS-SWITCH if required.)
Additionally, it incorporates anti-phase control, which shifts the switching phase of Ch.2 and Ch.3 with respect to Ch.1 and spread spectrum frequency modulation that disperses noise. These effectively suppress noise, contributing to improved image quality and operational stability of camera modules.
| Product Name | NP8700 Series |
| Sample Unit Price (Reference unit price when purchasing 1000 units, tax Included*) |
JPY 275 |
| Sample Order Start Date | October 23, 2025 |
| Monthly Production | 1 million pcs |
- *The price is based on the consumption tax rate as of October 2025.
Features
1. Integration of Power Supplies Optimized for Automotive Camera Modules into a Single Package
It provides four power supply lines required for CMOS sensors and peripheral control in one package. LDO outputs can be selected for applications requiring low noise. This stabilizes the camera module's image quality and signal integrity, enabling higher accuracy and more reliable operation.
2. Significantly Improved Usability Compared to the Conventional NJW4750
The buck regulator for Ch.1 in the conventional NJW4750 uses diode rectification. In contrast, one in the NP8700 adopts synchronous rectification, which reduces the number of external components required. Furthermore, the output current specifications have been enhanced, allowing for a wider range of applications. Additionally, improved EMI performance through spread spectrum frequency modulation, as well as support for shutdown sequence settings, offers greater design flexibility and ease of use.
| NJW4750 | NP8700 | |
| Ch.1: Operating Input Voltage Range | 3.9 V to 40 V | 3.9 V to 20 V |
| Ch.1: Rectification Method | Diode rectification | Synchronous rectification |
| Output Current | Ch.1 DCDC: 1.2 A Ch.2 DCDC: 0.6 A Ch.3 Selectable: 0.6 A (SW mode) 0.3 A (LDO mode) Ch.4 LDO: 0.3 A |
Ch.1 DCDC: 1.2 A Ch.2 DCDC: 1.0 A Ch.3 Selectable: 1.0 A (SW mode) 0.2 A (LDO mode) Ch.4 LDO: 0.2 A |
| Spread Spectrum Frequency Modulation | Not Supported | Supported |
| Sequence Setting | Set with EN pin and PG pin (power on only) | Selectable with external resistors (also supports shutdown) |
| Reset (Power-Good) Signal Delay Time Setting | Supported only when latch mode is selected for OCP | Supported (delay time is set with external capacitor) |
| UVLO Threshold Voltage | Fixed | Selectable between two options |
Product Photo
NP8700 Series, QFN2634-26-NC (3.4 × 2.6 × 0.75 mm)
Main Specifications (Please refer to the datasheet for details.)
| Items | NP8700 Series |
| Operating Input Voltage Range | Medium voltage Ch.1: 3.9 V to 20 V (maximum rating: 22 V) Low voltage Ch.2, Ch.3, Ch.4: 2.4 V to 5.5 V (maximum rating: 7 V) |
| Quad Channel Combination Regulator IC | Ch.1: Medium voltage, synchronous buck converter, output current: 1.2 A Ch.2: Low voltage, synchronous buck converter, output current: 1.0 A Ch.3: Low voltage, selectable regulator synchronous buck converter, output current: 1.0 A, or LDO, output current: 0.2 A Ch.4: Low voltage, output current: 0.2 A, LDO (can be operated as an HS-SWITCH if required) |
| Protection Functions | Under voltage lockout (UVLO), selectable between two options Over current protection function (selectable: hiccup/foldback or latch) Thermal shutdown |
| Oscillating Frequency | Typ. 2 MHz |
| Built-In Functions | External clock synchronization Spread spectrum frequency modulation (selectable: enable or disable) Anti-phase operation between Ch.1 and Ch.2 / 3 Built-in phase compensation circuit Soft start function |
| Package | QFN2634-26-NC (3.4 × 2.6 × 0.75 mm) |
Applications
- Automotive Camera Modules
- Driver Monitoring Systems
