R3500 Series
42 V Input 4ch Window Voltage Detector with Diagnostic Function
R3500 Series
42 V Input 4ch Window Voltage Detector with Diagnostic Function
- Download Datasheet
- Point
-
Provides at-a-glance product features, functions, and concepts.
- ECAD Model: Learn more
-
拡大
:q
Description
The R3500 is a 4ch window voltage detector with manual reset function suited for systems requiring functional safety. This device monitors over and under voltage from the multiple power supplies to SoCs, memories and sensors to continuously supervise the system operating at normal voltage.
Key Benefits
- Power supply from battery enables the voltage detector to operate independently from the power source.
- High-accuracy detection of the over and under voltages from -1.25% to 0.75% and the hysteresis of Max. 0.75%.
- Management of multiple power supplies with a single chip to save space.
Spec
| Standard | Industrial | Automotive | |
|---|---|---|---|
| Operating Voltage Range | 3.0 V to 42.0 V (50.0 V) | ||
| Operating Temperature Range | -40°C to 105°C (125°C) | -40°C to 125°C (150°C) | -40°C to 125°C (150°C) |
| Supply Current | Typ. 10.0 µA | ||
| Overvoltage Detection | 1.0 V to 5.9 V (0.01 V step) | ||
| Undervoltage Detection | 0.9 V to 5.0 V (0.01 V step) | ||
| Detector Threshold Accuracy | ±0.5% (Ta = 25°C) -1.25% to 0.75% (–40°C ≤ Ta ≤ 105°C) |
±0.5% (Ta = 25°C) -1.25% to 0.75% (–40°C ≤ Ta ≤ 125°C) |
±0.5% (Ta = 25°C) -1.25% to 0.75% (–40°C ≤ Ta ≤ 125°C) |
| Detection Release Hysteresis | Typ. 0.5% | ||
| Release Delay Time | Typ. 4 ms (CD = 0.01 µF) | ||
| Output Type | Nch Open Drain | ||
| Package | HSOP-18 | ||
Technical Documents
-

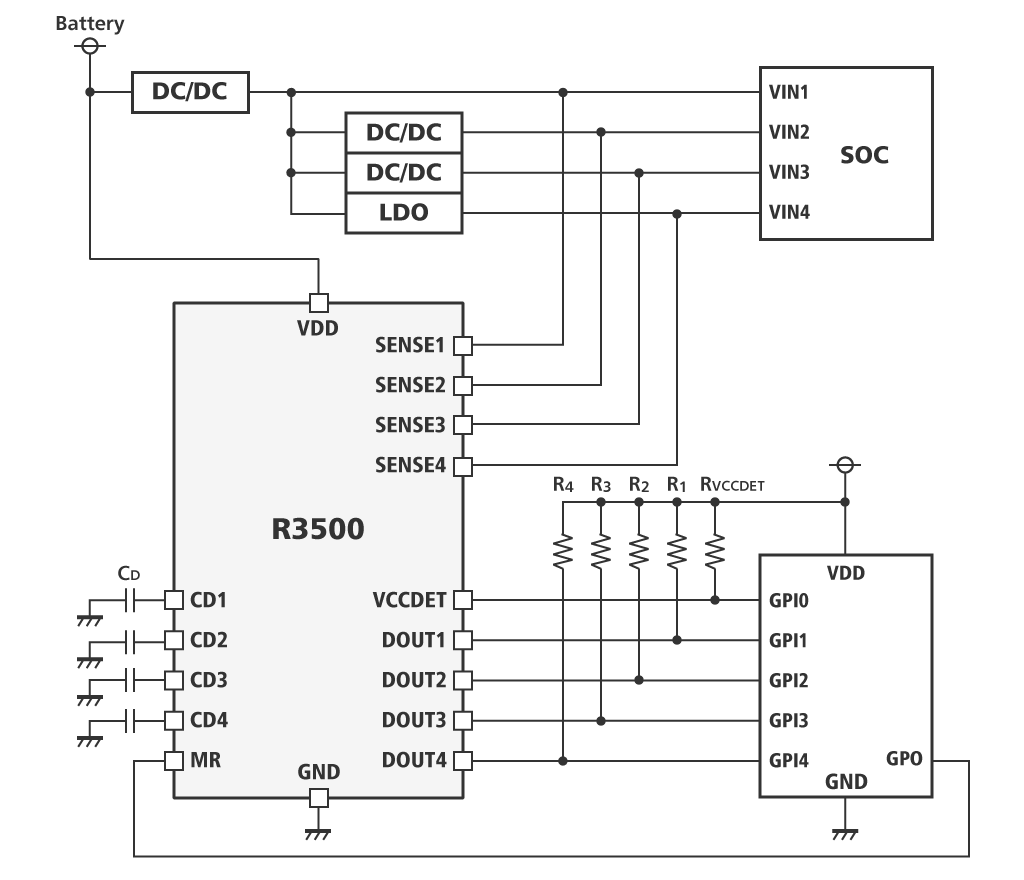

Typical Application
Quality & Packages
- Refer to the datasheets for the details on the product.
- The package file or the datasheet includes package dimensions, taping specifications, taping reels dimensions, power dissipations, and recommended land pattern.
