R3152 Series
42V Input Window Voltage Detector
R3152 Series
42V Input Window Voltage Detector
- Download Datasheet
- Point
-
Provides at-a-glance product features, functions, and concepts.
- ECAD Model: Learn more
-
拡大
:q
Description
The R3152 is a window voltage detector suited for achieving the functional safety. This device monitors over- and under- voltage of the output voltage from the power supply IC for a microprocessor and a sensor, and can prevent malfunction of system caused by abnormal voltage. This product for industrial applications are characterized to -50°C, and operates in a wide temperature range from low temperature to high temperature.
Key Benefits
- A stable voltage with supplying the battery voltage can provide the power supply and the voltage supervising separately.
- High-accuracy detection enables with Overvoltage/Undervoltage Detection Accuracy of -1.25%to 0.75% and Hysteresis of 1.5%.
- Small package of SOT-23-6 is adopted, and a safe and secure pin assignment with considering a short among adjacent pins.
Spec
| Standard | Industrial | Automotive | |
|---|---|---|---|
| Operating Voltage Range | 3.0 V to 42.0 V (50.0 V) | ||
| Operating Temperature Range | -40°C to 105°C (125°C) | -50°C to 125°C (150°C) | -40°C to 125°C (150°C) |
| Supply Current | Typ. 1.5 µA | ||
| Overvoltage Detection | 1.1 V to 5.9 V (0.01 V step) | ||
| Undervoltage Detection | 1.0 V to 4.8 V (0.01 V step) | ||
| Detector Threshold Accuracy | ±0.5% (Ta = 25°C) -1.25% to 0.75% (–40°C ≤ Ta ≤ 105°C) |
±0.5% (Ta = 25°C) -1.25% to 0.75% (–50°C ≤ Ta ≤ 125°C) |
±0.5% (Ta = 25°C) -1.25% to 0.75% (–40°C ≤ Ta ≤ 125°C) |
| Detection Release Hysteresis | R3152NxxxA: Typ. 1.0% R3152NxxxB: No Hysteresis |
||
| Release Delay Time | Typ. 4 ms (CD = 0.01 µF) | ||
| Output Type | Nch Open Drain | ||
| Package | SOT-23-6 | ||
Technical Documents
-
SPICE model download
You can download the product's SPICE model. Login/registration to myNISD is required to download.
-

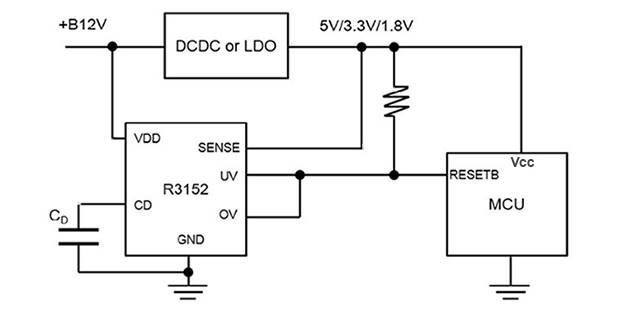

Typical Application
