Ricoh Electronic Devices Co., Ltd. has launched the RN5U700 series
Nov. 28, 2017
Ricoh Electronic Devices Co., Ltd.
Ricoh Electronic Devices Co., Ltd. has launched the RN5U700 series, the USB power delivery controller ICs compliant with the USB Type-C Specification Revision 1.2 and USB Power Delivery Specification Revision 3.0v1.0a.
The RN5U700 series integrate a VBUS switch control with overcurrent protection, overvoltage protection, over-temperature detection, oscillator, and high-voltage LDO. These functions allow to build a USB power delivery system with only few external parts.
The RN5U700 series have a logic for performing the power negotiation of USB power delivery. This circuit enables a microcomputer-less standalone operation to receive and supply power with low power consumption while conforming to the USB power delivery standard. The RN5U700 series are capable of extending operations such as an alternate mode by connecting with an embedded controller.

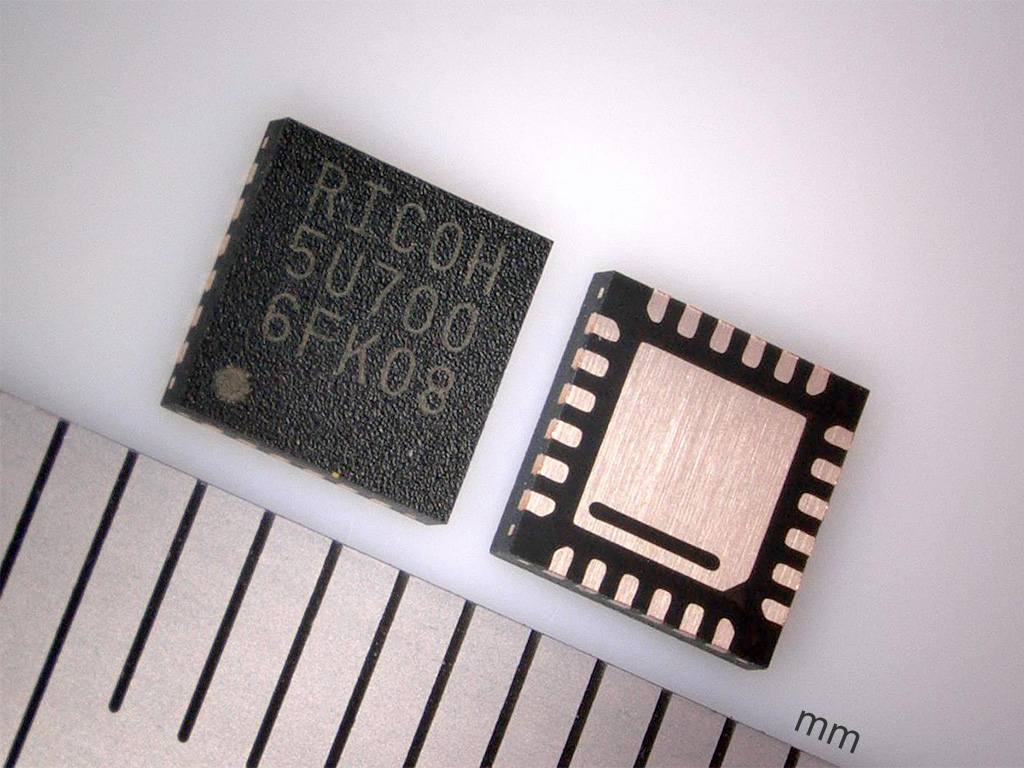

RN5U700 (QFN0404-24-P12 Package)
Features
| Compliant with USB | USB Power Delivery Specification Revision 3.0v1.0a |
|---|---|
| USB Type-C Specification Revision 1.2 | |
| USB Type-C Port Controller Interface Specification Revision 1.0 (TCPC) | |
| Power Role | Source / Sink / DRP |
| Data Role | DFP / UFP / DRD |
| Standalone Mode | Operates power negotiation without using a microcomputer |
| Power Switch Control | Nch-FET / Pch-FET / Switch IC |
| Integrate Protection Function | Overvoltage detection/protection, Overcurrent detection/protection, Over-temperature detection/protection |
| VBUS Control | Slew rate control / Soft-start / Built-in discharge path |
| CC Pin | 20-V input, Built-in VCONN switch |
| Dead Battery | Built-in high voltage LDO |
| System Interface | 1 MHz I2C (Fm+), Interrupt terminal |
| Standby Current | Typ. 2.8 µA |
| Supply Current | Typ. 1.6 mA |
| Operating Temperature Range | −20°C to 70°C (Nch FET mode), −20°C to 85°C (Pch FET mode/Switch IC mode) |
| Package | QFN0404-24-P12, 4.0 mm × 4.0 mm |
