R3150 Series
36V Input Voltage Detector with Detect and Release Delay Function or SENSE pin
Description
The R3150 Series are CMOS-based 36V input voltage detector ICs. Since the maximum input voltage of R3150 is 36V (absolute maximum rating: 50V) and R3150 has high voltage accuracy and low supply current, it is suitable for car battery voltage supervisor. There are two versions: A/B versions provide VDD pin detection and E/F versions provide SENSE pin detection. Detector threshold and Release voltage can be specified separately. Both the detector threshold accuracy and the release voltage accuracy are ±1.5%. The detect output delay time and the release output delay time (Power-on Reset Time) can be set by a pin. The output types are Nch open drain "L" output and Nch open drain "H" output. SOT-23-6 package is available.
Spec
| Standard | Industrial | Automotive | |
|---|---|---|---|
| Operating Voltage Range | R3150NxxxA/B: 1.4 V to 36.0 V (50.0 V) R3150NxxxE/F: 3.6 V to 6.0 V (7.0 V) |
||
| Operating Temperature Range | -40°C to 105°C (125°C) | -40°C to 105°C (150°C) | -40°C to 105°C (150°C) |
| Supply Current | R3150NxxxA/B: Typ. 3.8 µA R3150NxxxE/F: Typ. 3.5 µA |
||
| Detector Threshold Range | 5.0 V to 10.0 V (0.1 V step) | ||
| Detector Threshold Accuracy | ±1.5% (Ta = 25°C) ±2.0% (-40°C to 105°C) |
||
| Release Voltage Range | 5.3 V to 11.0 V (0.1 V step) | ||
| Release Voltage Accuracy | ±1.5% (25°C) ±2.0% (-40°C to 105°C) |
||
| Release Delay Time Accuracy | -35% to 40% (-40°C to 105°C) | ||
| Output Type | Nch Open Drain | ||
| Package | SOT-23-6 | ||
| Detection Delay Time Accuracy | -35% to 40% (-40°C to 105°C) | ||
Technical Documents
-
SPICE model download
You can download the product's SPICE model. Login/registration to myNISD is required to download.
-

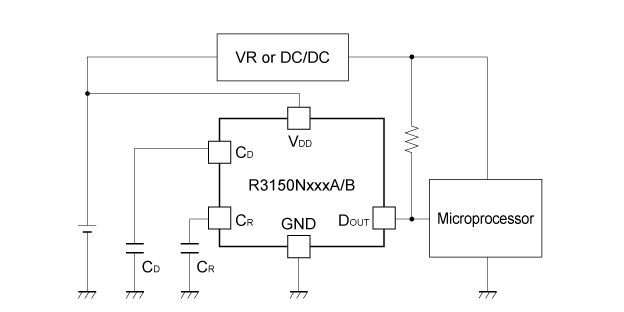

R3150NxxxA/B Typical Application
-

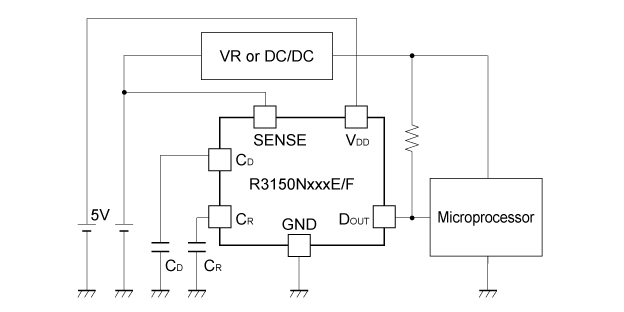

R3150NxxxE/F Typical Application
-

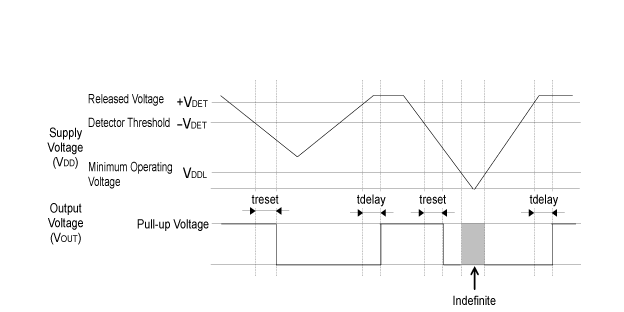

R3150NxxxA Timing Chart
-

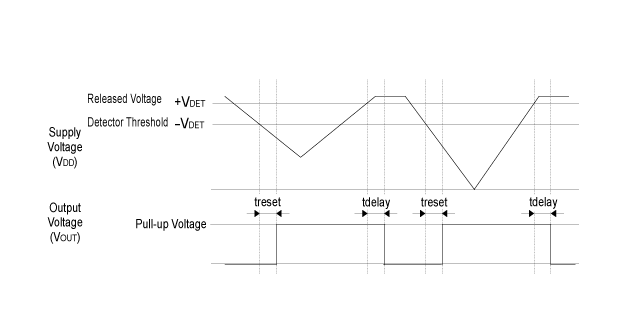

R3150NxxxB Timing Chart
-

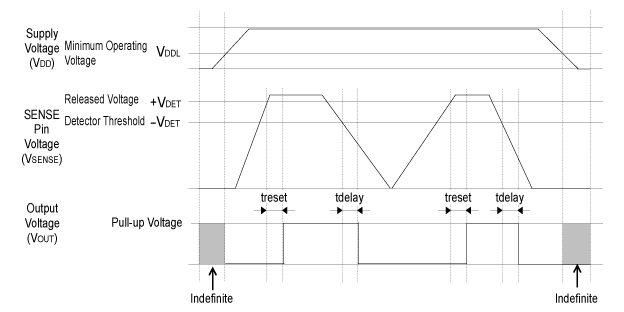

R3150NxxxE Timing Chart
-

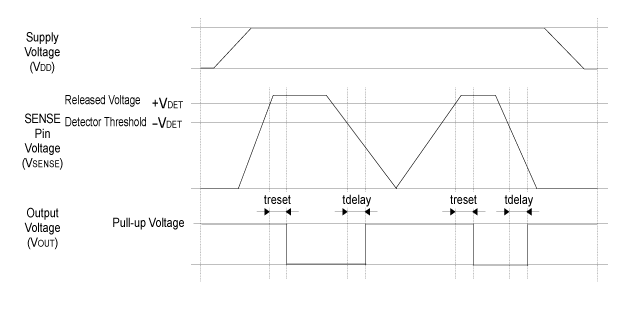

R3150NxxxF Timing Chart
Quality & Packages
- Refer to the datasheets for the details on the product.
- The package file or the datasheet includes package dimensions, taping specifications, taping reels dimensions, power dissipations, and recommended land pattern.
Qualification Test Plan (QTP) Sheets
To download the QTP sheets, a myNISD account is required. If you do not have an account, please register in advance.If you already have an account, please click the button below. After logging in to myNISD, the QTP sheet list page for the corresponding series will be displayed.
