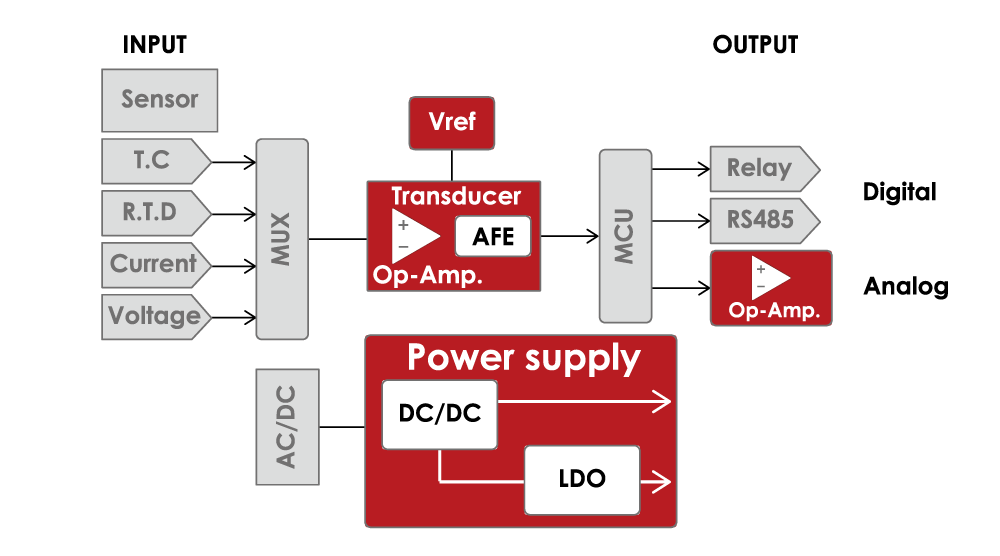

Digital Controller Block Diagram
If the portion to which the color was attached is clicked, it will jump to a products.
(Op-Amp.) Transducer
| products | Features |
|---|---|
| NJU7066 | Precision, Low Noise, Rail-to-Rail Output, Excellent EMI Immunity, CMOS Operational Amplifiers |
| NJU7077 | Precision, Low Noise, Rail-to-Rail Output, Excellent EMI Immunity, CMOS Operational Amplifiers |
| NJU7098A | 0.05µV/°C max, Zero-Drift, Single Supply Rail-to-Rail Output CMOS Operational Amplifier |
(AFE) Transducer
| products | Features |
|---|---|
| NJU9103 | Analog Front End with High Gain PGA |
(DC/DC) Power Supply Block
| products | Features |
|---|---|
| NJW1933 | 600mA,500kHz,Step-Down Switching Regulator in SOT23 |
| NJW4152A | Switching Regulator IC for Buck Converter with 40V/1A or 40V/600mA MOSFET |
| NJW4152B | Switching Regulator IC for Buck Converter with 40V/1A or 40V/600mA MOSFET |
| NJW4153 | Switching Regulator IC for Buck Converter Current Mode Control with 40V/1A MOSFET |
| NJW4170 | Current Mode Control High Speed Frequency Internal 1A MOSFET Switching Regulator IC for Buck Converter |
| NJW4175(U.D.) | 600mA MOSFET Switching Regulator IC for Synchronous Buck Converter |
