R3118 系列
带延时功能和SENSE引脚的低压的电压检测器

下载数据表

  • 概述

    The R3118 Series are CMOS-based voltage detector ICs with the built-in output delay circuit. Since R3118 has a SENSE pin for monitoring voltage separately from the power pin, its reset signal does not become unstable under the condition that the power supply is sufficient to operate the IC, and the "L" can be maintained. The detector threshold can be specified from 0.6V. The delay time can be set with an external capacitor connected to CD pin. The R3118 is offered in a 5-pin SOT-23-5 package. It is also offered in 5-pin SC-88A and 6-pin DFN(PLP)1212-6 packages, 1.2 mm x 1.2 mm, for consumer applications.

  • 规格
    消费 车载
    工作电压范围 1.0 V to 6.0 V (7.0 V)
    工作温度范围 -40°C to 85°C (125°C) -40°C to 85°C (125°C)
    -40°C to 125°C (125°C)
    电源电流 Typ. 0.4 µA (VSENSE ≥ +VDET, VDD = 6 V)
    Supply current of the SENSE resistor is not included.
    检测器阈值范围 0.6 V to 5.0 V (0.1 V step)
    检测器阈值精度 ±1.5% (Ta = 25°C, -VDET_S ≥ 1.6 V)
    ±22.5 mV (-VDET_S < 1.6 V)
    检测器阈值温度系数 Typ. ±30 ppm/°C
    释放延迟时间精度 ±30%
    输出类型 CMOS, Nch Open Drain
    封装 DFN(PLP)1212-6, SC-88A, SOT-23-5 SOT-23-5
  • 技术资料

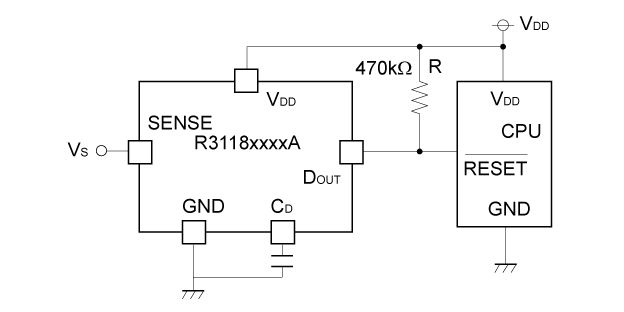

    • Typical Application: R3118xxxxA CPU Reset Circuit (Nch Open Drain Output)

      Typical Application: R3118xxxxA CPU Reset Circuit (Nch Open Drain Output)

      VDD pin Voltage to R3118xxxxA is equal to VDD pin Voltage to CPU

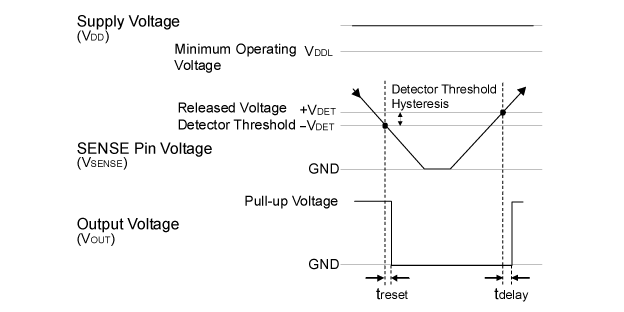

    • R3118xxxxA Timing Chart

      R3118xxxxA Timing Chart

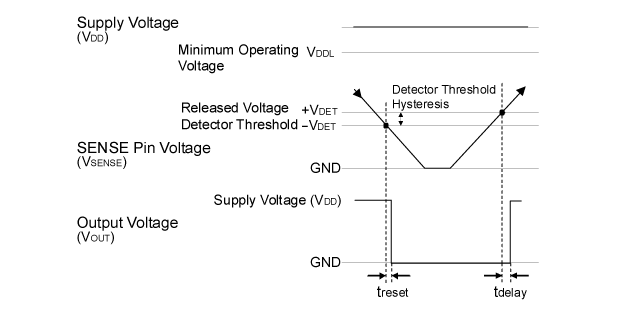

    • R3118xxxxC Timing Chart

      R3118xxxxC Timing Chart

  • 品质&封装
    • 有关产品的详细信息,请参见数据表。
    • 封装文件包括封装尺寸,卷带规格,卷带盘尺寸,功耗和建议的焊盘图案。
    • 请联系我们或我们的代理商以获取未发布的可靠性信息。
