R3119 系列
36V输入的电压检测器,带延时功能或SENSE引脚

下载数据表

  • 概述

    The R3119 Series are CMOS-based 36V input voltage detector ICs. Since the maximum input voltage of R3119 is 36V (absolute maximum rating: 50V) and R3119 can detect up to 12V without divider resistor, it is suitable for digital home appliances. There are two versions: A version has the CD pin for setting the output delay time. E version has the SENSE pin. The output delay time accuracy of R3119xxxxA is -50% to +80%. The reset signal of R3119xxxxE does not become unstable under the condition that the power supply is sufficient to operate the IC, and the "L" can be maintained. The R3119 is offered in a 5-pin SOT-23-5 package. It is also offered in a small-sized 6-pin DFN(PLP)1820-6 package for consumer and industrial applications. This product for industrial applications are characterized to -50°C, and operates in a wide temperature range from low temperature to high temperature.

  • 规格
    消费 工业 车载
    工作电压范围 R3119xxxxA: 1.2 V to 36.0 V (50.0 V)
    R3119xxxxE: 2.1 V to 6.0 V (7.0 V)
    工作温度范围 -40°C to 105°C (125°C) -50°C to 105°C (125°C) -40°C to 105°C (125°C)
    电源电流 Typ. 3.3 µA
    检测器阈值范围 2.3 V to 12.0 V (0.1 V step)
    检测器阈值精度 ±1.5% (Ta = 25°C)
    检测器阈值温度系数 Typ. ±100 ppm/°C
    释放延迟时间 R3119xxxxA: Typ.85 ms (CD = 0.01 µF)
    释放延迟时间精度 R3119xxxxA: −50% to 80%
    输出类型 Nch Open Drain
    封装 DFN(PLP)1820-6, SOT-23-5 DFN(PLP)1820-6, SOT-23-5 SOT-23-5
  • 技术资料
    • R3119xxxxA Typical Application

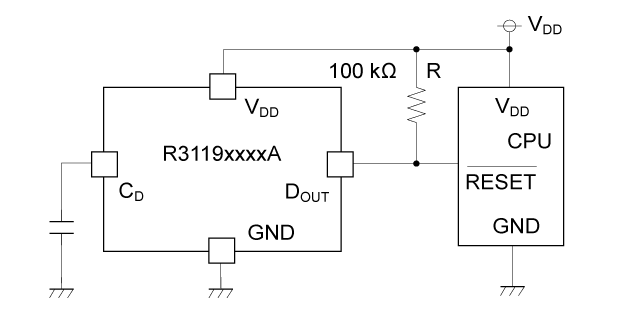

      R3119xxxxA Typical Application

      When using a shared input voltage between R3119 and CPU

    • R3119xxxxE Typical Application

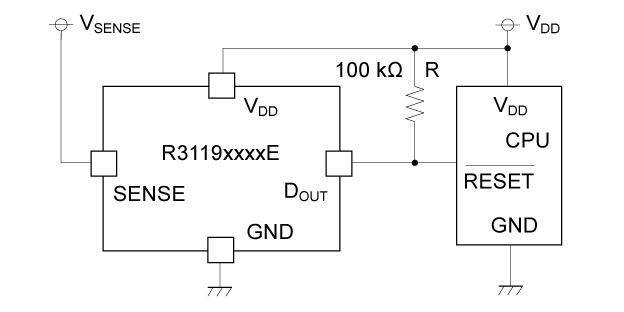

      R3119xxxxE Typical Application

      When using a shared input voltage between R3119 and CPU

    • R3119xxxxA Timing Chart

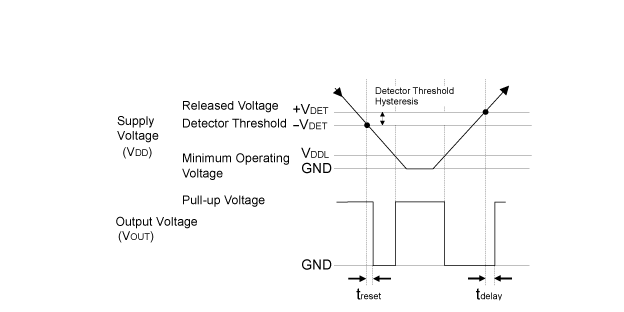

      R3119xxxxA Timing Chart

    • R3119xxxxE Timing Chart

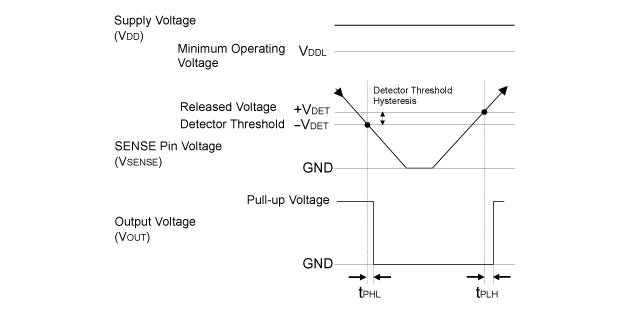

      R3119xxxxE Timing Chart

  • 品质&封装
    • 有关产品的详细信息,请参见数据表。
    • 封装文件包括封装尺寸,卷带规格,卷带盘尺寸,功耗和建议的焊盘图案。
    • 请联系我们或我们的代理商以获取未发布的可靠性信息。
