Application Block for Power Tool

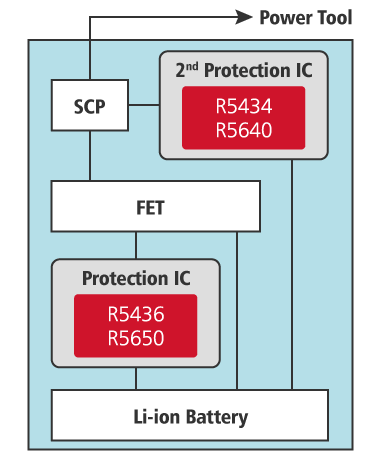

Stand-alone multi-cell (with Second Protection IC)

Stand-alone multi-cell (with Second Protection IC)

Recommended Items

Product Name Function
Protection IC R5436 3-Cell to 5-Cell Li-ion Battery Protection IC with Thermal Protection
Protection IC R5650 3-Cell to 5-Cell Li-ion Battery Protection IC with Thermal Protection
2nd Protection IC R5434 2-Cell to 5-Cell Li-ion Battery Second Protection IC
2nd Protection IC R5640 2-Cell to 5-Cell Li-ion Battery Second Protection IC

Stand-alone multi-cell

Stand-alone multi-cell

Recommended Items

Product Name Function
Protection IC R5436 3-Cell to 5-Cell Li-ion Battery Protection IC with Thermal Protection
Protection IC R5650 3-Cell to 5-Cell Li-ion Battery Protection IC with Thermal Protection

AFE (with Second Protection IC)

AFE (with Second Protection IC)

Recommended Items

Product Name Function
AFE R5601 3-Cell to 5-Cell Li-ion Battery Management Analog Front-End IC
AFE R5602 4-Cell to 7-Cell Li-ion Battery Management Analog Front-End IC
2nd Protection IC R5434 2-Cell to 5-Cell Li-ion Battery Second Protection IC
2nd Protection IC R5640 2-Cell to 5-Cell Li-ion Battery Second Protection IC

AFE

AFE

Recommended Items

Product Name Function
AFE R5601 3-Cell to 5-Cell Li-ion Battery Management Analog Front-End IC
AFE R5602 4-Cell to 7-Cell Li-ion Battery Management Analog Front-End IC
