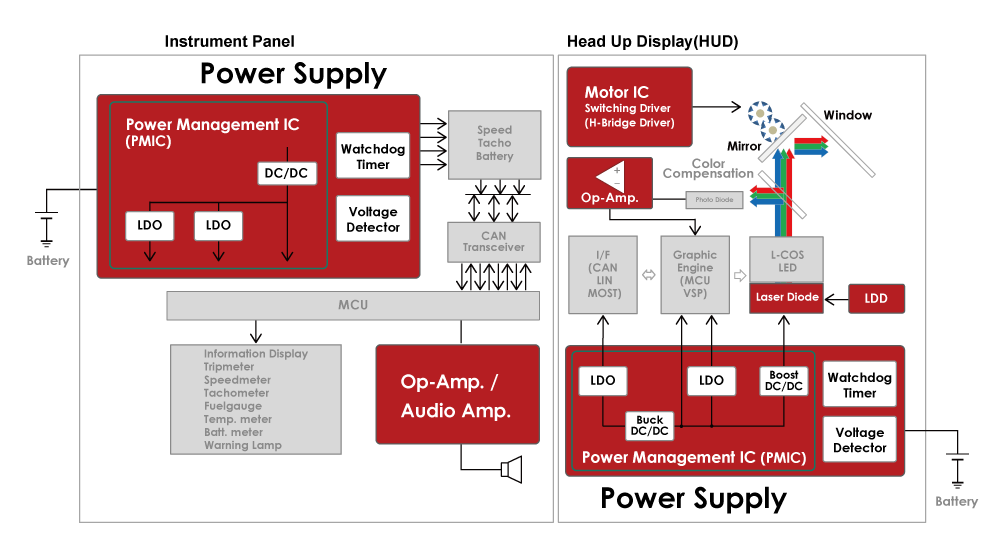

Information (Head Up Display(HUD), Instrument Panel) Block Diagram


If the portion to which the color was attached is clicked, it will jump to a products.

Information

電源ICブロック オーディオアンプ (モータIC) オペアンプ 電源ICブロック 電源ICブロック

Operational Amplifier

Products Features
NJM8532T1 14V, Low Noise, Low Power, Rail-to-Rail Input/Output, Operational Amplifier
NJU7047T1 9V/µs High-Speed, Rail-to-Rail I/O CMOS Operational Amplifier
NJU77552 1.7MHz, 50µA/ch, Excellent EMI Immunity, Rail-to-Rail Input/Output, Operational Amplifier
NJU77701 Wide-Band, High-Speed, Low-Offset, Low-Noise Rail-to-Rail Input/Output CMOS Operational Amplifier

(LDO) Power Supply IC

Products Features
NJM11100 Adjustable Low Dropout Regulator with Reverse Current Protection
NJM12884 LDO with Reverse Current Protection / Soft Start / Discharge Function
NJM2879 LDO with Reverse Current Protection / Discharge Function
NJW4104 45V Io=200mA Ultra low Quiescent current LDO
NJW4105 High Voltage Io=500ma LDO Regulator
NJW4106 High Voltage Io = 500 mA Adjustable LDO Regulator
NJW4107 45V Io=300mA LDO
R1560 Low Supply Current 60V Input 100mA Voltage Regulator
RP130 Low Noise 150mA LDO Regulator
RP171 10V Input 150mA LDO Regulator
R1524 High Noise Immunity Low Supply Current 42V Input 200mA Voltage Regulator
RP170 10V Input 300mA LDO Regulator
RP111 Low Voltage Good Load Transient Response 500mA LDO Regulator
R1517 36V Input 500mA Low Supply Current Voltage Regulator
RP115 Low Voltage 500mA/1A LDO Regulator
RP132 Low Voltage 1ALDO Regulator

(DC/DC) Power Supply IC

Products Features
NJW4110 2.4MHz, 3A x 2ch. Synchronous Buck Converter for POL
NJW4171 2.4MHz, 2.5A MOSFET Switching Regulator IC for Buck Converter
RP550 Dual 1A PWM/VFM Step-down DC/DC Converter with Synchronous Rectifier
R1271 30 V, 1 A Synchronous PWM Step-down DC/DC Converter
RP506 2A PWM/VFM Step-down DC/DC Converter with Synchronous Rectifier
R1278 30 V, 2 A Synchronous PWM Step-down DC/DC Converter
R1276 3A 30V Input Step-down DC/DC Converter with Synchronous Rectifier
RP510 4A Forced PWM Step-down DC/DC Converter with Synchronous Rectifier
R1272 34V Input PWM/VFM Step-down DC/DC Controller with PLL Synchronization
NJW1871 MOSFET Drive Switching Regulator IC for Boost / Fly-back Converter
NJW4132 Switching Regulator IC for Boost Converter Current Mode Control with 45V/1.75A MOSFET
NJW4133 2.4MHz, 45V, 5A MOSFET Switching Regulator IC for Boost Converter
NJW4140 MOSFET Drive Switching Regulator IC for Boost / Fly-back Converter
NJW4142 MOSFET Drive Switching Regulator IC for Boost / Fly-back Converter
R1294 Triple Output DC/DC Converter for LCD/CCD

(Voltage Detector, Watchdog Timer) Power Supply IC

Products Features
R3116 0.8% Accuracy 0.5V Operating Voltage Detector with Delay Function
R3118 Low Voltage Detector with Individual SENSE Pin and Delay Function
R3151xxxxA/B 36V Input Voltage Detector with Detect and Release Delay Function or SENSE pin
R3151xxxxE/F 36V Input Voltage Detector with Detect and Release Delay Function or SENSE pin
R3119xxxxA 36V Input Voltage Detector with Delay Function or SENSE pin
R3119xxxxE 36V Input Voltage Detector with Delay Function or SENSE pin
R5112 Low Supply Current 42V Input 200mA Voltage Regulator with VD
R5106 Watchdog Timer Equipped with Inhibit Pin with VD

(LDD) Power Supply IC

Products Features
RN5C750 4ch RGB Laser Diode Driver for Display System, for Automotive Applications

(PMIC) Power Supply IC

Products Features
NJW4750 Quad Channel Combination Regulator
RN5T569 Programmable Power Management IC for Automotive Applications

(Audio Amplifier) Audio Amplifier

Products Features
NJU7089 High-Power & Low-Voltage Audio Power Amplifier
NJU72060 500mW Monaural Speaker Amplifier

(Class D Amplifier) Audio Amplifier

Products Features
NJU8759A Analog Signal Input Monaural Filter Less 3.0W Class-D Amplifier

Motor IC

Products Features
NJU7367B Single-phase DC Brushless Motor Driver IC
