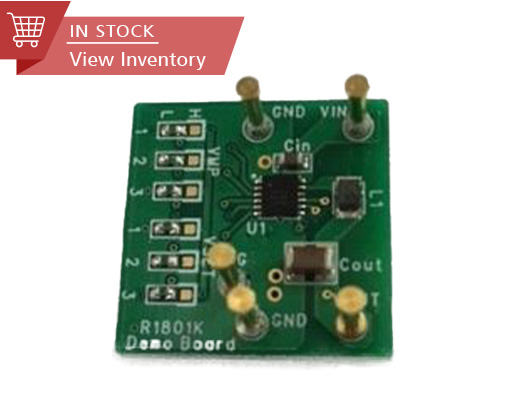

R1801 系列
用于能量收集器的降压DC/DC转换器,可调节最大功率点,可调节输出电压和PG功能

下载数据表

  • 概述

    R1801 is a power-storing buck DC/DC converter for a photovoltaic and vibration energy harvester. The Power Good (PG) function can output PG signal according to the output voltage facilitating to build a system.
    A low operating quiescent current allows a harvester to be used under a low-illumination environment, and it is suitable for an equipment with low power supplied from a harvester.

    • Providing a low power supply (IQ 200 nA) and a high efficiency (approximately 80%@10 µA).
    • Monitoring the output voltage to output Power Good (PG) signal.
    • Adjustable the output voltage and maximum power point control voltage in 100 mV step by the setting pins.

  • 规格
    消费
    输入电压范围 2.3 V to 5.5 V (6.5 V)
    工作温度范围 -40°C to 85°C (125°C)
    工作静态电流 Typ. 200 nA (Ta = 25°C, at no load)
    输出电压范围 2.3 V to 4.5 V
    输出电压精度 ±3% (Ta = 25°C)
    封装 DFN(PLP)2730-12
    最小启动功率 1 µW
    功能 可调节最大功率点,可调节输出电压

    保护回路/功能

    TSD ILX OCP OVP UVLO OVLO Reverse Shutdown Soft Start SSCG PGOOD Auto Discharge Anti-ringing Sequencing Max Duty Ext. Phase LED Adjust
  • 技术资料
    • Typical Application

      Typical Application
    • Efficiency vs. Output Current

      Efficiency vs. Output Current

  • 品质&封装
    • 有关产品的详细信息,请参见数据表。
    • 封装文件包括封装尺寸,卷带规格,卷带盘尺寸,功耗和建议的焊盘图案。
    • 请联系我们或我们的代理商以获取未发布的可靠性信息。

下载数据表

功能说明

TSD 热关断电路
ILX LX Current Limit Function
OCP 过流保护
OVP 过压保护
UVLO 欠压锁定功能
OVLO Overvoltage Lockout Protection
Reverse 反向电流保护电路
Shutdown 关机功能
Soft Start 软启动功能
SSCG Spread Spectrum Clock Generator Function
PGOOD Power Good Output
Auto Discharge 自动放电功能
Anti-ringing Anti-ringing Switch Function
Sequencing Start-up Sequencing Control
Max Duty 最大占空比
Ext. Phase 外部可调相位补偿
LED Adjust LED High-speed Dimming Control

用以下条件检索类似商品

分类:DC / DC开关稳压器

拓扑结构 Buck
输入电压
min (V)
2.3
输入电压
max (V)
5.5
输出电压
min (V)
2.3
输出电压
max (V)
4.5
消费电流
(µA)
0.2
