R3120 系列
36V输入的电压检测器，带延时功能或SENSE引脚

下载数据表

  • 概述

    The R3120 Series are CMOS-based 36V input voltage detector ICs. Since the maximum input voltage of R3120 is 36V (absolute maximum rating: 50V) and R3120 can detect up to 12V without divider resistor, it is suitable for automotive applications. There are two versions: A version has the CD pin for setting the output delay time. E version has the SENSE pin. The output delay time accuracy of R3120xxxxA is -50% to +80%. The reset signal of R3120xxxxE does not become unstable under the condition that the power supply is sufficient to operate the IC, and the "L" can be maintained. SOT-23-5 package is available.

  • 规格
    车载
    工作电压范围 R3120NxxxA: 1.2 V to 36.0 V (50.0 V)
    R3120NxxxE: 2.1 V to 6.0 V (7.0 V)
    工作温度范围 -40°C to 105°C (125°C)
    电源电流 Typ. 3.3 µA
    检测器阈值范围 2.3 V to 12.0 V (0.1 V step)
    检测器阈值精度 ±1.5% (Ta = 25°C)
    检测器阈值温度系数 Typ. ±100 ppm/°C
    释放延迟时间 R3120NxxxA: Typ.85 ms (CD = 0.01 µF)
    释放延迟时间精度 R3120NxxxA: −50% to 80%
    输出类型 Nch Open Drain
    封装 SOT-23-5
    下载数据表
  • 技术资料

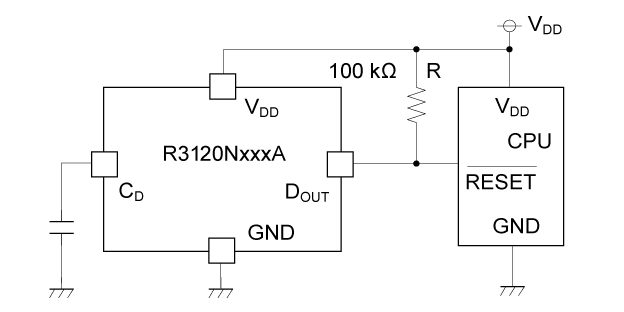

    • R3120NxxxA Typical Application

      R3120NxxxA Typical Application

      When using a shared input voltage between R3120 and CPU

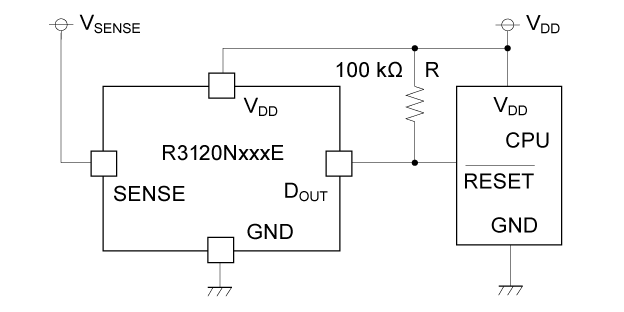

    • R3120NxxxE Typical Application

      R3120NxxxE Typical Application

      When using a shared input voltage between R3120 and CPU

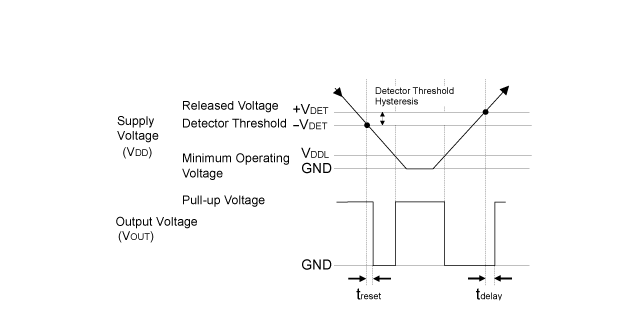

    • R3120NxxxA Timing Chart

      R3120NxxxA Timing Chart

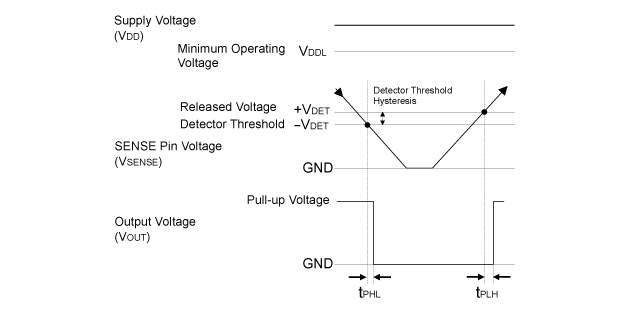

    • R3120NxxxE Timing Chart

      R3120NxxxE Timing Chart

  • 品质&封装
    产品名称 对应 封装 标注 信赖性
    R3120Nxxxx-TR-AE
    • gradeAutomotive
    • aecQ100
    • plp
    		 SOT-23-5 R3120N R3120N-AE
    • 有关产品的详细信息，请参见数据表。
    • 封装文件或数据表包括封装尺寸，卷带规格，卷带盘尺寸，功耗和建议的焊盘图案。
  • 买入/样品
检索类似产品

下载数据表

功能说明

用以下条件检索类似商品

分类：电压检测器（复位芯片）

输入电压
min (V)		 1.2
输入电压
max (V)		 36.0
解除延迟
时间		 Adjustable,No
检测电压
min (V)		 2.3
检测电压
max (V)		 12.0
