R8315 系列
10V输入的电压检测器，带解除延时功能

  • 概述

    The R8315 Series are CMOS-based 36V input voltage detector ICs. Since the maximum input voltage of R8315 is 36V (absolute maximum rating: 50V) and R8315 has high voltage accuracy and low supply current, it is suitable for car battery voltage supervisor.

    There are two versions: A/B versions provide VDD pin detection and E/F versions provide SENSE pin detection. Detector threshold and Release voltage can be specified separately. Both the detector threshold accuracy and the release voltage accuracy are ±1.5%.

    The detect output delay time and the release output delay time (Power-on Reset Time) can be set by a pin. The output types are Nch open drain "L" output and Nch open drain "H" output. SOT-23-6 package is available.

  • 规格
    车载
    工作电压范围 R8315NxxxA/B: 1.4 V to 36.0 V (50.0 V)
    R8315NxxxE/F: 3.6 V to 6.0 V (7.0 V)
    工作温度范围 -40°C to 125°C (150°C)
    电源电流 R8315NxxxA/B: Typ. 3.8 µA
    R8315NxxxE/F: Typ. 3.5 µA
    检测器阈值范围 5.0 V to 10.0 V (0.1 V step)
    检测器阈值精度 ±1.5% (Ta = 25°C)
    ±2.0% (−40°C ≤ Ta ≤ 110°C)
    释放电压范围 5.3 V to 11.0 V (0.1 V step)
    释放电压精度 ±1.5% (25°C)
    ±2.0% (−40°C ≤ Ta ≤ 110°C)
    释放延迟时间精度 -35% to 40% (−40°C ≤ Ta ≤ 110°C)
    输出类型 Nch Open Drain
    封装 SOT-23-6
    Detection Delay Time Accuracy -35% to 40% (−40°C ≤ Ta ≤ 110°C)
  • 技术资料

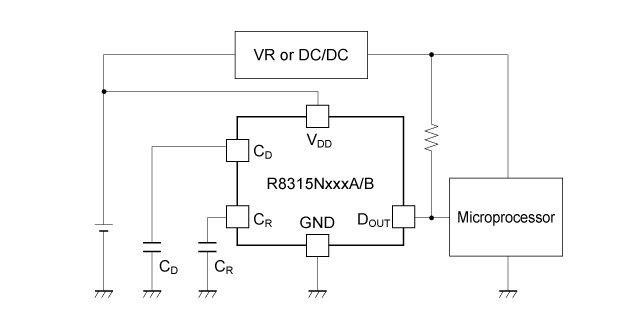

    • R8315NxxxA/B Typical Application

      R8315NxxxA/B Typical Application

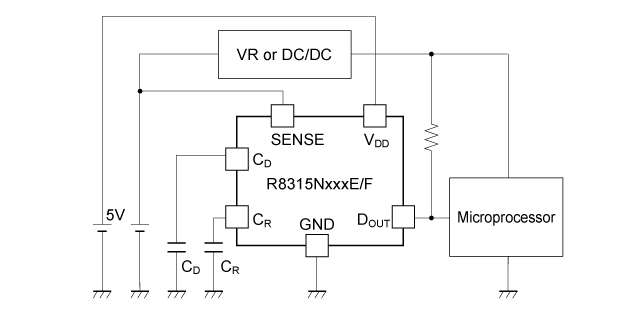

    • R8315NxxxE/F Typical Application
