R3154 系列
42V输入 窗口式电压监测带诊断功能

下载数据表
Point
提供一目了然的产品特性、功能和概念。
ECAD 模型: 了解详情
  • 消费设备用
  • 工业设备用
  • 车载用
  • AEC-Q100
  • 产品长期供应计划 (PLP)
  • RoHS
封装1
封装1

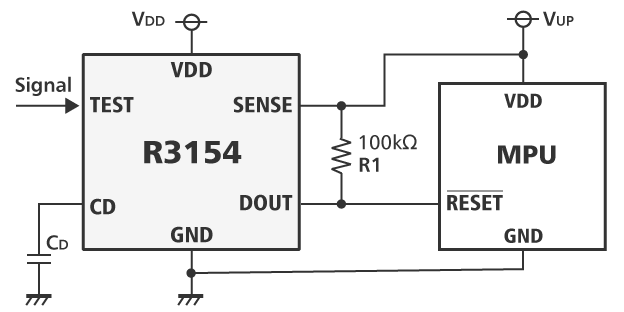

概述

The R3154 is a Window Voltage Detector suitable for functional safety requirement. This device monitors over-and-under output voltages from the power supply IC for a microprocessor and a sensor, and detects abnormal voltage of systems. Its undervoltage detection down to 0.55 V is suitable for low power devices. Also, operation check of voltage detection is available with the TEST pin.

特点

  • Power supply from battery enables the voltage detector to operate independently from the power source.
  • High-accuracy over-and-undervoltage detection from -1.25% to 0.75% and the hysteresis of Max. 0.75%.
  • Overvoltage detection: 0.75 V at minimum, Undervoltage detection: 0.55 V at minimum.
  • Compact package of SOT-23-6. Safe and secure adjacent pin configuration to prevent a short circuit.

规格

消费 工业 车载
工作电压范围 3.0 V to 42.0 V (50.0 V)
工作温度范围 -40°C to 105°C (125°C) -40°C to 125°C (150°C) -40°C to 125°C (150°C)
电源电流 Typ. 2.0 µA
过压检测 0.75 V to 3.70 V (0.01 V step)
欠压检测 0.55 V to 3.30 V (0.01 V step)
检测器阈值精度 ±0.5% (Ta = 25°C)
-1.25% to 0.75% (–40°C ≤ Ta ≤ 105°C)
±0.5% (Ta = 25°C)
-1.25% to 0.75% (–40°C ≤ Ta ≤ 125°C)
±0.5% (Ta = 25°C)
-1.25% to 0.75% (–40°C ≤ Ta ≤ 125°C)
检测释放迟滞 Typ. 0.5%
释放延迟时间 Typ. 4 ms (CD = 0.01 µF)
输出类型 Nch Open Drain
封装 SOT-23-6

下载数据表

用以下条件检索类似商品

分类:电压检测器(复位芯片)

特性 Window Detector,Diagnostic Function
输入电压
min (V)
3.0
输入电压
max (V)
42.0
解除延迟
时间
Adjustable
检测电压
min (V)
0.55
检测电压
max (V)
3.70

技术资料

  • 应用信息

    应用信息

品质&封装

  • 有关产品的详细信息,请参见数据表。
  • 封装文件或数据表包括封装尺寸,卷带规格,卷带盘尺寸,功耗和建议的焊盘图案。
