R3121 系列
36V输入的电压检测器,带解除延时功能

下载数据表

  • 概述

    R3121 is the 36 V Maximum Input Voltage Detector (Maximum Rating: 50 V). Selectable options of VDD Pin Detection Type (R3121NxxxA), SENSE Pin Detection Type (R3121NxxxE) and VDD Pin Detection without Hysteresis Type (R3121NxxxG), depending on the system configurations.

    特点

    • Highly accurate voltage detection with detector threshold accuracy ±1.5% (Ta = 25°C)
    • Selectable options of VDD Pin Detection, SENSE Pin Detection and VDD Pin Detection without Hysteresis
    • Adjustment of the release delay time (Power-on Reset Time) by connecting external capacitors
    • Reduction of mounting area by using compact package of SOT-23-6

  • 规格
    消费 工业 车载
    工作电压范围 R3121NxxxA/G: 1.4 V to 36.0 V (50.0V)
    R3121NxxxE: 2.4 V to 6.0 V (7.0V)
    工作温度范围 -40°C to 85°C (125°C) -40°C to 125°C (150°C) -40°C to 125°C (150°C)
    电源电流 R3121NxxxA/G: Typ. 3.8 µA
    R3121NxxxE: Typ. 3.5 µA
    检测器阈值范围 3.0 V to 12.0 V (0.1 V step)
    检测器阈值精度 ±1.5% (Ta = 25°C)
    ±2.0% (-40°C ≤ Ta ≤ 85°C)
    ±1.5% (Ta = 25°C)
    -2.2 to 2.5% (-40°C ≤ Ta ≤ 125°C)
    ±1.5% (Ta = 25°C)
    -2.2 to 2.5% (-40°C ≤ Ta ≤ 125°C)
    释放延迟时间精度 -35% to 40% (-40°C ≤ Ta ≤ 85°C) -40% to 80% (-40°C ≤ Ta ≤ 125°C) -40% to 80% (-40°C ≤ Ta ≤ 125°C)
    输出类型 Nch Open Drain
    封装 SOT-23-6
  • 技术资料
    • Typical Application

      Typical Application

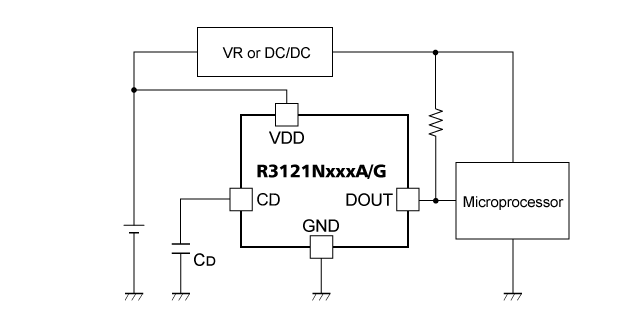

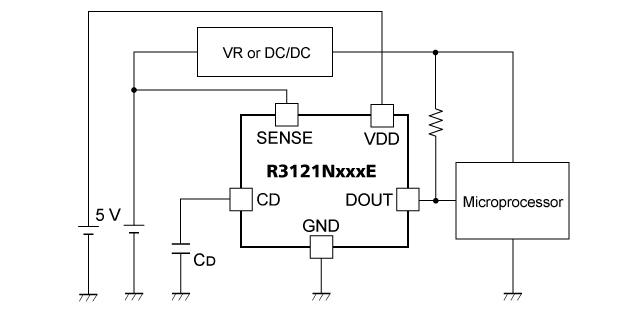

    • Typical Application

      Typical Application

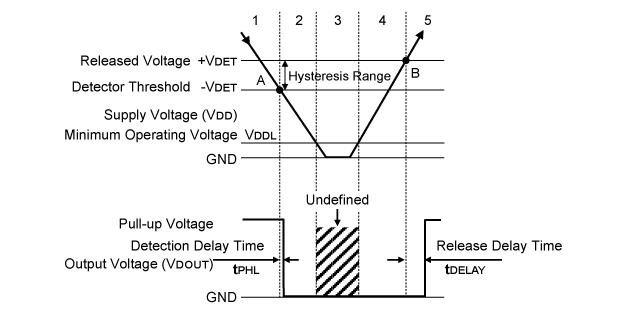

    • R3121NxxxA Timing Chart

      R3121NxxxA Timing Chart

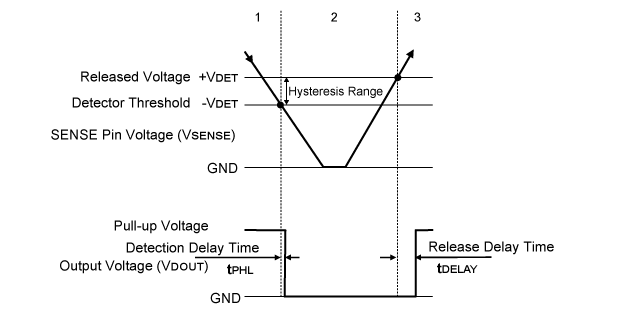

    • R3121NxxxE Timing Chart

      R3121NxxxE Timing Chart

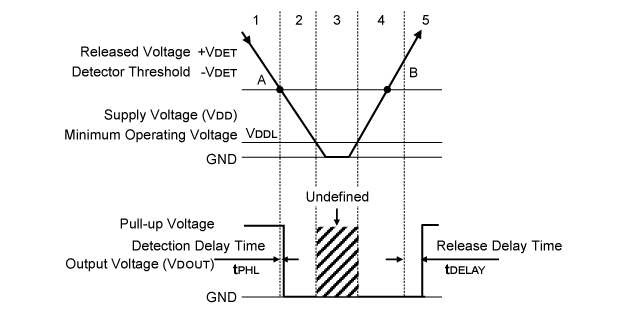

    • R3121NxxxG Timing Chart

      R3121NxxxG Timing Chart

  • 品质&封装
    • 有关产品的详细信息,请参见数据表。
    • 封装文件包括封装尺寸,卷带规格,卷带盘尺寸,功耗和建议的焊盘图案。
    • 请联系我们或我们的代理商以获取未发布的可靠性信息。

下载数据表

功能说明

用以下条件检索类似商品

分类:电压检测器(复位芯片)

输入电压
min (V)
1.4
输入电压
max (V)
36.0
解除延迟
时间
Adjustable
检测电压
min (V)
3.0
检测电压
max (V)
12.0
