When using the NJM2626 with Vcc=12V, if 10V is applied to the hall amplifier input, will it be recognized as High?
When using the NJM2626 with Vcc=12V, if 10V is applied to the hall amplifier input, will it be recognized as High?

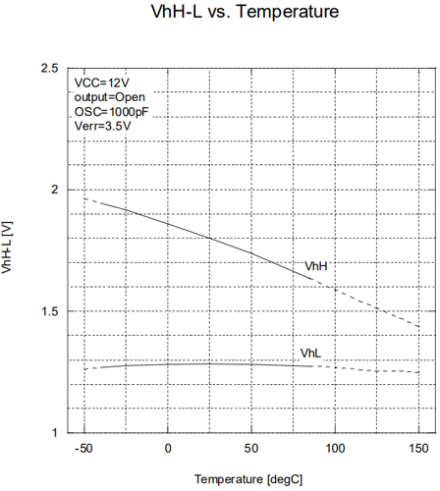

From the example of VhH-L vs. Temperature characteristics, the actual value of the IC is VhH ≤ 2V. Therefore, if a voltage of approximately 2V or more is applied, it will be judged as High.

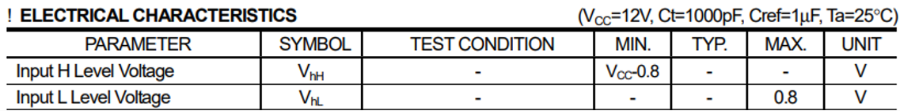

The guaranteed value of the IC is the value stated in the data sheet specifications (VhH:VCC-0.8V), By setting the H-level threshold voltage low, we have made it possible to reliably judge the H-level without relying on VCC.
