We have released the MUSES8920, mass production model of MUSES Series, offering finest
sound to audio fans more widely. The MUSES8920 is a J-FET-input dual Operational
Amplifier inheriting high quality sound concept that we pursued in the development of
the MUSES01/02, and it employs chip-layout and lead-frame material optimized for mass
In addition to DIP package (lead insertion type), it employs halogen and lead-free surface mount package. The package provides mass productivity gain of audio equipment manufacturers and reduction of environmental impact.MUSES8920 can experience high-quality audio to many fans. It is suitable for a variety of music genres with no habit by making sound.
- Operating Voltage
- Vopr= ±3.5V to ±16V
- Low Noise
- 8nV/√Hz typ.
- Input Offset Voltage
- VIO= 0.8mV typ. 5mV max.
- Input Bias Current
- IB= 5pA typ. 250pA max. @Ta=25°C
- Voltage Gain
- Av=135dB typ.
- Slew Rate
- SR=25V/µs typ.
- J-FET technology

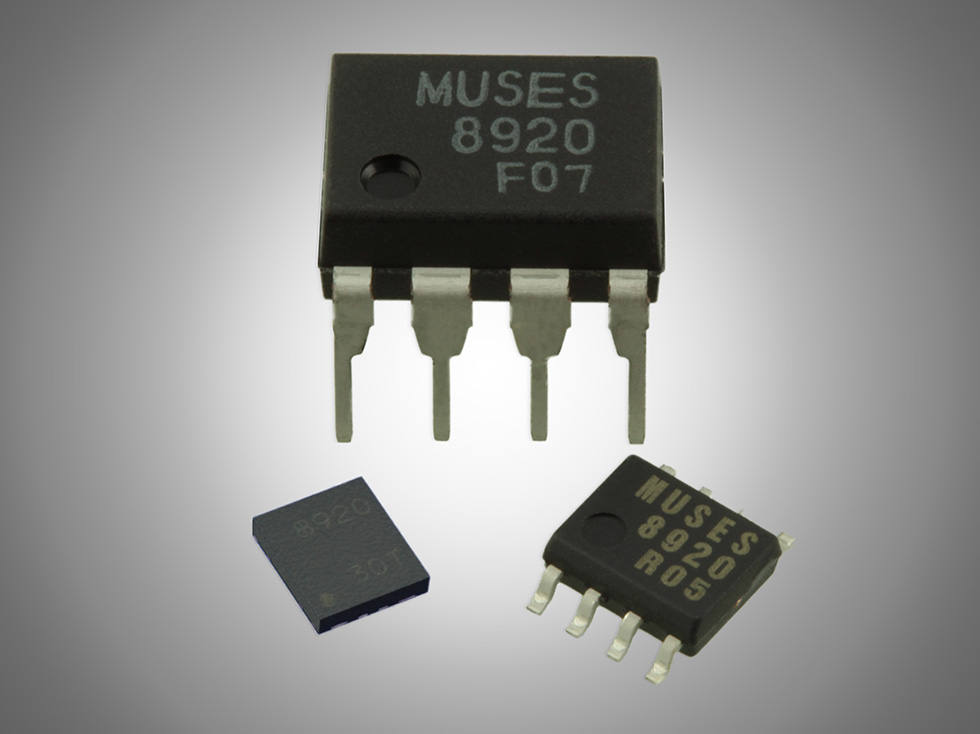

- Package Outline
- DIP8 (8.8×6.4×6.75mm typ.)
SOP8 JEDEC 150mil (5.0×6.0×1.65 mm typ.)
DFN8-X7(ESON8-X7) (3.5×4.0×0.7 mm typ.)
- High-end & professional audio equipment
